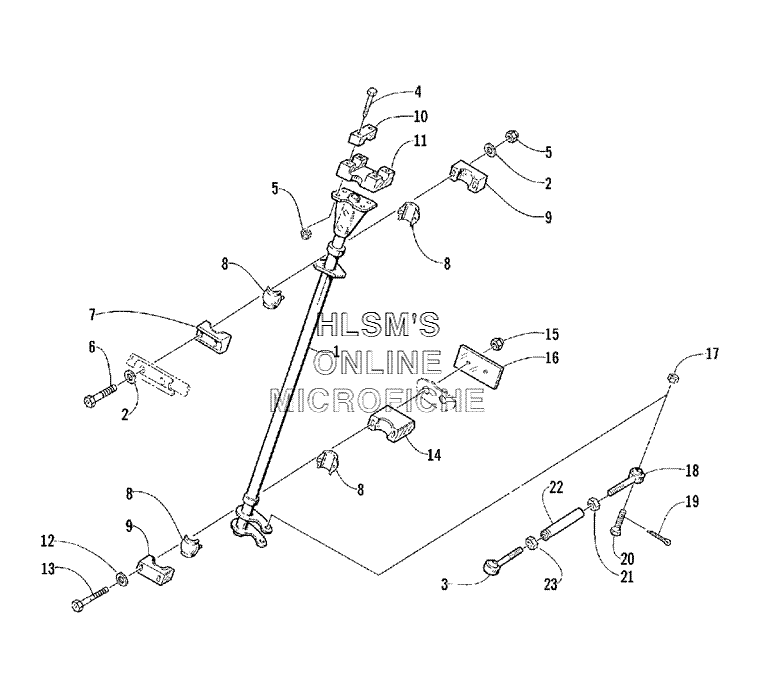

STEERING POST ASSEMBLY для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска
-
№АртикулНазвание
-
10705-150 POST, STEERINGPOST, STEERING
-
28050-217 WASHERWASHER
-
30605-202 BALL JOINT, TIE ROD - RIGHTBALL JOINT, TIE ROD - RIGHT
-
48002-047 SCREW, CAPSCREW, CAP
-
58040-366 NUT, LOCKNUT, LOCK
-
68002-052 SCREW, CAPSCREW, CAP
-
70605-147 HOUSING, BEARING - UPPERHOUSING, BEARING - UPPER
-
80605-149 BEARING, HALFBEARING, HALF
-
90605-171 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
100105-350 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
110105-351 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
128050-247 WASHERWASHER
-
130623-224 SCREW, CAPSCREW, CAP
-
140605-146 HOUSING, BEARING - LOWERHOUSING, BEARING - LOWER
-
158040-426 NUT, LOCKNUT, LOCK
-
160605-217 PLATE, BACKINGPLATE, BACKING
-
170623-026 NUT, LOCKNUT, LOCK
-
180605-203 BALL JOINT, TIE ROD - LEFTBALL JOINT, TIE ROD - LEFT
-
190623-175 PIN, COTTERPIN, COTTER
-
200623-436 SCREW, CAPSCREW, CAP
-
210123-917 NUT, HEX - LEFTNUT, HEX - LEFT
-
220605-251 TUBE, TIE RODTUBE, TIE ROD
-
230623-294 NUT, HEX - RIGHTNUT, HEX - RIGHT
