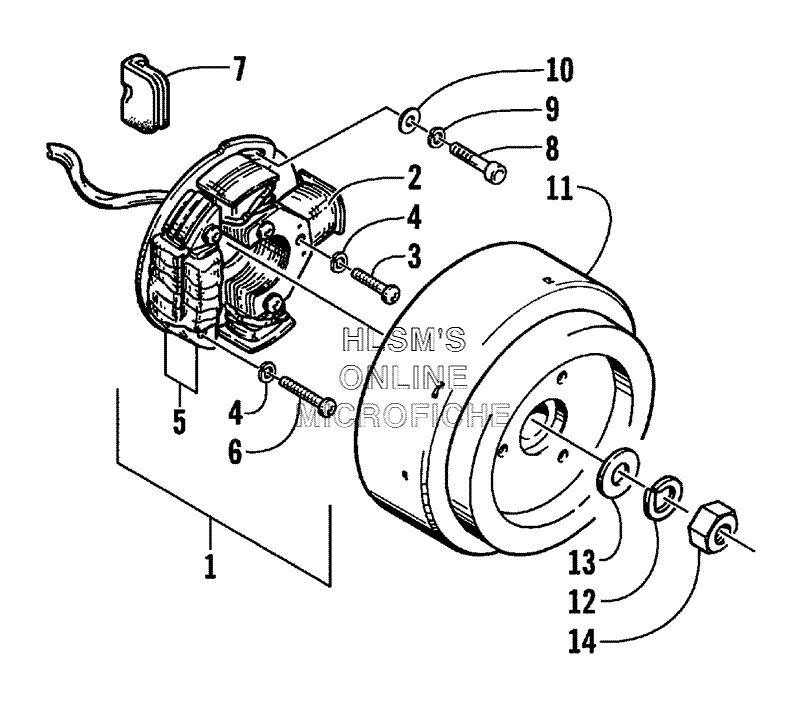

MAGNETO для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13004-833 STATOR ASSEMBLY (INC. 2-6)STATOR ASSEMBLY (INC. 2-6)
-
23003-013 . COIL, LIGHTING. COIL, LIGHTING
-
33004-445 . SCREW, MACHINE. SCREW, MACHINE
-
43004-344 . WASHER, LOCK. WASHER, LOCK
-
53004-834 . COIL SET, PRIMARY. COIL SET, PRIMARY
-
63004-476 . SCREW, MACHINE. SCREW, MACHINE
-
73003-795 GROMMETGROMMET
-
83004-893 SCREW, CAPSCREW, CAP
-
93004-447 WASHER, LOCKWASHER, LOCK
-
103003-429 WASHERWASHER
-
113004-979 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
123004-345 WASHER, LOCKWASHER, LOCK
-
133005-175 WASHERWASHER
-
143004-380 NUTNUT
