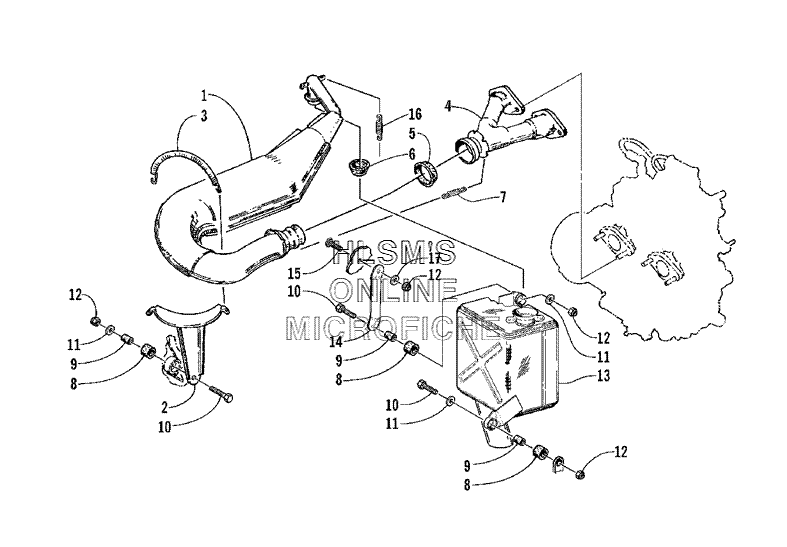

EXHAUST ASSEMBLY для Arctic Cat Bearcat Wide Track (USA) - 2000 года выпуска
-
№АртикулНазвание
-
10712-379 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
20712-156 BRACKET, SUPPORTBRACKET, SUPPORT
-
30612-013 SPRING, EXTENSIONSPRING, EXTENSION
-
40712-193 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
50612-131 GASKET, EXHAUSTGASKET, EXHAUST
-
60612-188 GASKET, EXHAUST - TAILPIPEGASKET, EXHAUST - TAILPIPE
-
70123-321 SPRING, EXTENSIONSPRING, EXTENSION
-
80612-107 BUSHING, RESONATOR - RUBBERBUSHING, RESONATOR - RUBBER
-
90612-108 SPACER, RESONATORSPACER, RESONATOR
-
108002-044 SCREW, CAPSCREW, CAP
-
110623-184 WASHERWASHER
-
128040-366 NUT, LOCKNUT, LOCK
-
130712-381 RESONATORRESONATOR
-
140612-479 BRACKET, MOUNTING - RESONATORBRACKET, MOUNTING - RESONATOR
-
150623-597 SCREW, CAPSCREW, CAP
-
160612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
178050-217 WASHERWASHER
