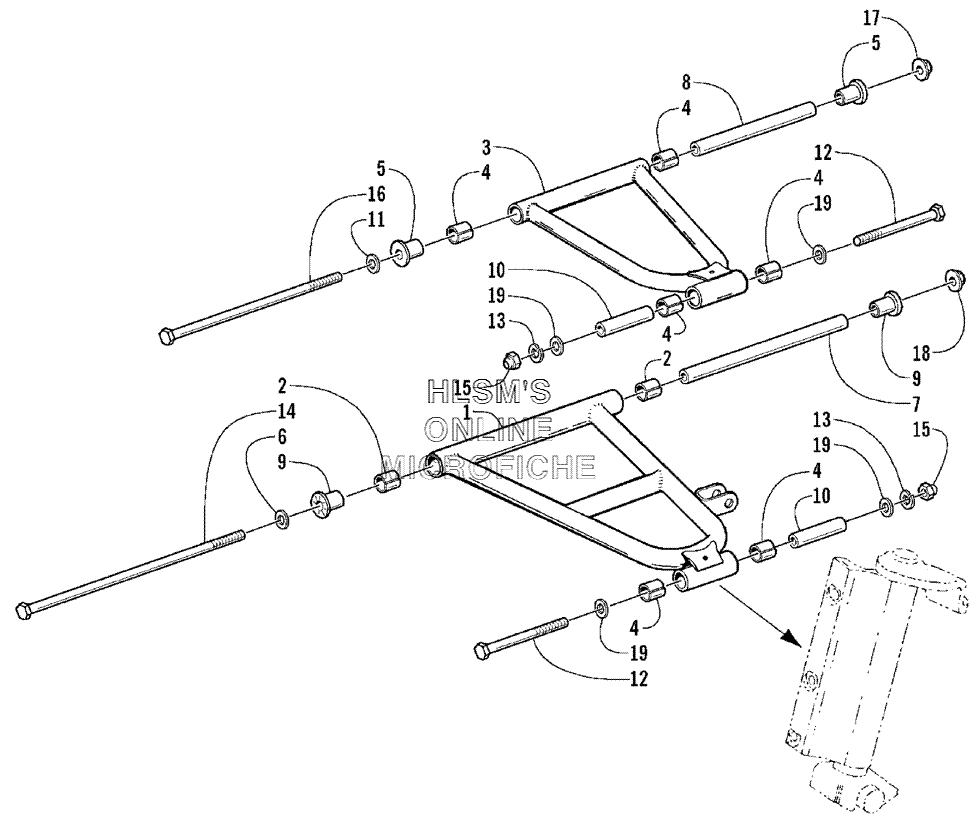

A-ARM ASSY. для Arctic Cat ZL 440 - 2000 года выпуска
-
№АртикулНазвание
-
10703-532 ARM (LOWER) (RIGHT) (INC. 2 AND 4)ARM (LOWER) (RIGHT) (INC. 2 AND 4)
-
10703-533 ARM (LOWER) (LEFT) (INC. 2 AND 4)ARM (LOWER) (LEFT) (INC. 2 AND 4)
-
20603-158 . BEARING. BEARING
-
30703-535 ARM (UPPER) (INC. 4)ARM (UPPER) (INC. 4)
-
40603-083 . BEARING. BEARING
-
51603-244 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
60623-663 WASHERWASHER
-
70603-693 TUBE, AXLETUBE, AXLE
-
80603-692 TUBE, AXLETUBE, AXLE
-
90603-524 AXLE, SERRATEDAXLE, SERRATED
-
100603-830 AXLE, SPINDLE MOUNTAXLE, SPINDLE MOUNT
-
110623-664 WASHERWASHER
-
120623-657 SCREW, CAPSCREW, CAP
-
138051-277 WASHER, LOCKWASHER, LOCK
-
140623-508 SCREW, CAPSCREW, CAP
-
150623-026 NUT, LOCKNUT, LOCK
-
160623-509 SCREW, CAPSCREW, CAP
-
170623-661 NUT, LOCKNUT, LOCK
-
180623-660 NUT, LOCKNUT, LOCK
-
198050-277 WASHERWASHER
