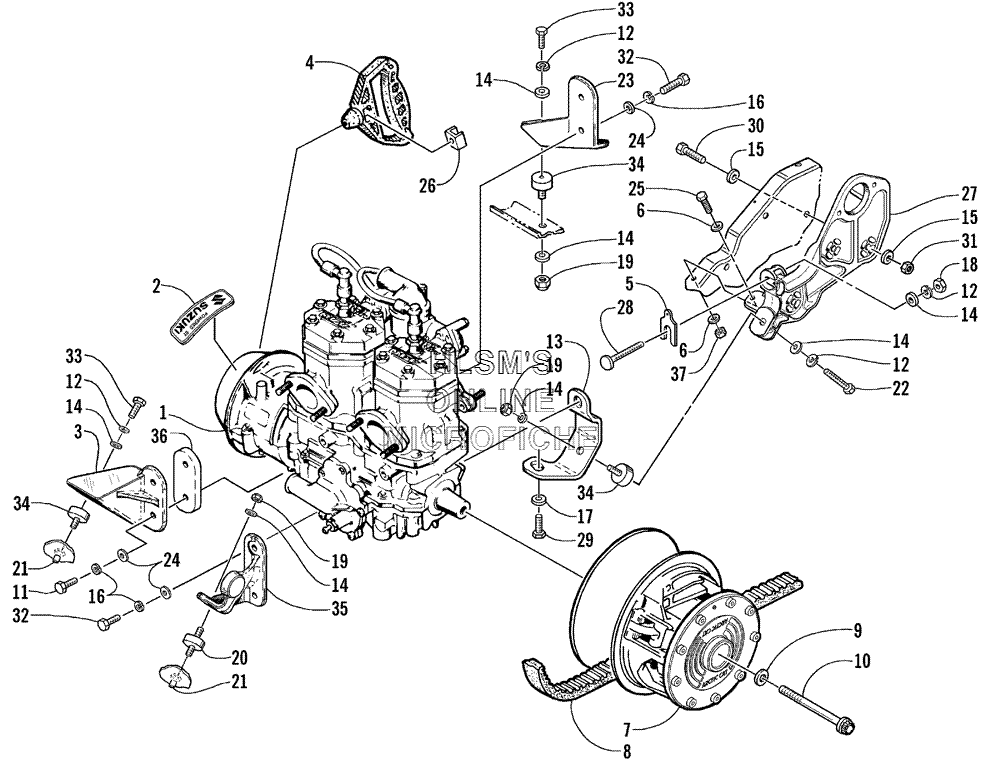

ENGINE AND RELATED PARTS для Arctic Cat ZL 440 - 2000 года выпуска
-
№АртикулНазвание
-
10662-253 ENGINE, AL44L9ENGINE, AL44L9
-
21611-588 DECAL, ENGINE, SUZUKIDECAL, ENGINE, SUZUKI
-
30708-022 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
50608-056 SHIM, ENGINE MOUNT, 0.060 IN.SHIM, ENGINE MOUNT, 0.060 IN.
-
68050-222 WASHERWASHER
-
70725-302 CLUTCH, DRIVECLUTCH, DRIVE
-
80627-021 BELT, DRIVEBELT, DRIVE
-
90623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
118012-134 SCREW, CAPSCREW, CAP
-
128051-277 WASHER, LOCKWASHER, LOCK
-
130608-135 BRACKET, ENGINE MOUNTING (LEFT/REAR)BRACKET, ENGINE MOUNTING (LEFT/REAR)
-
148050-277 WASHERWASHER
-
150623-044 WASHERWASHER
-
168051-242 WASHER, LOCKWASHER, LOCK
-
178051-332 WASHER, LOCKWASHER, LOCK
-
188042-486 NUTNUT
-
198040-486 NUT, LOCKNUT, LOCK
-
200608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
210623-699 INSERT, THREADEDINSERT, THREADED
-
228002-226 SCREW, CAPSCREW, CAP
-
230708-030 BRACKET, ENGINE MOUNTING (RIGHT/REAR)BRACKET, ENGINE MOUNTING (RIGHT/REAR)
-
248050-247 WASHERWASHER
-
258002-041 SCREW, CAPSCREW, CAP
-
260606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
270708-054 BRACKET, ENGINE MOUNTING/BEARING SUPPORTBRACKET, ENGINE MOUNTING/BEARING SUPPORT
-
280608-197 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
298002-402 SCREW, CAPSCREW, CAP
-
300623-628 SCREW, CAPSCREW, CAP
-
310623-026 NUT, LOCKNUT, LOCK
-
328012-132 SCREW, CAPSCREW, CAP
-
338002-222 SCREW, CAPSCREW, CAP
-
340608-217 MOUNT, ENGINEMOUNT, ENGINE
-
350708-065 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
360608-273 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
378040-366 NUT, LOCKNUT, LOCK
