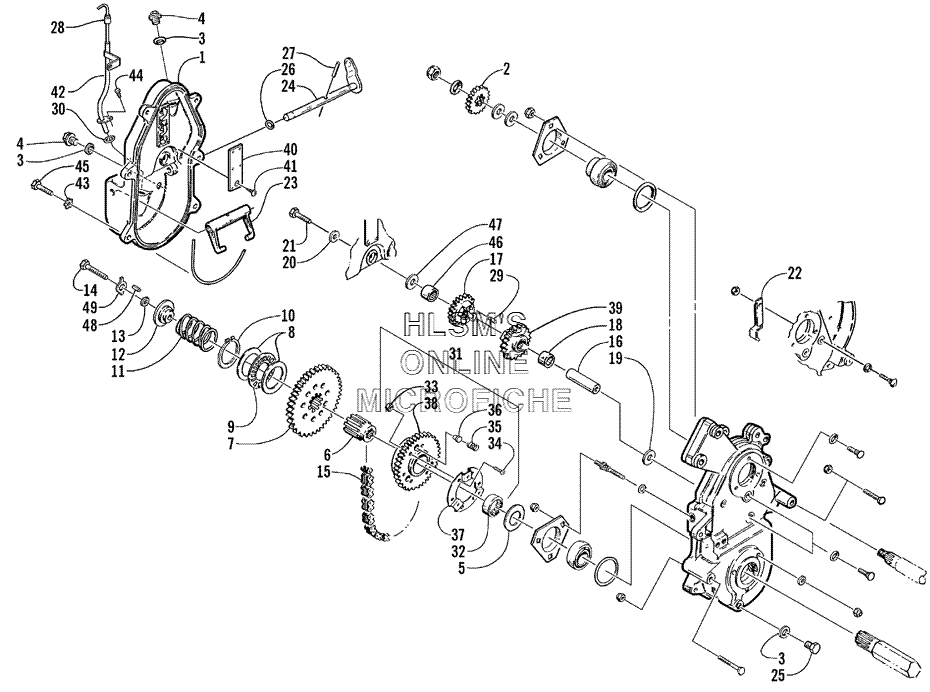

DRIVE/REVERSE DROPCASE ASSY. (OPTIONAL) для Arctic Cat ZL 440 - 2000 года выпуска
-
№АртикулНазвание
-
-1639-475 REVERSE OPTIONAL KITREVERSE OPTIONAL KIT
-
11602-009 COVER, DROPCASECOVER, DROPCASE
-
20602-444 SPROCKET (19 TEETH)SPROCKET (19 TEETH)
-
30123-641 WASHER, FIBERWASHER, FIBER
-
40623-293 PLUG, DRAINPLUG, DRAIN
-
50602-012 SPACER, SHAFTSPACER, SHAFT
-
61602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
70702-048 GEAR, REVERSE (55 TEETH) (INC. 8, 10)GEAR, REVERSE (55 TEETH) (INC. 8, 10)
-
80602-023 . WASHER, THRUST. WASHER, THRUST
-
90602-022 . BEARING, THRUST. BEARING, THRUST
-
100602-024 . RING, RETAINING. RING, RETAINING
-
110602-028 SPRING, RETURNSPRING, RETURN
-
138050-272 WASHERWASHER
-
148002-230 SCREW, CAPSCREW, CAP
-
151602-041 CHAIN, 70PCHAIN, 70P
-
160602-094 SHAFT, REVERSESHAFT, REVERSE
-
170702-366 IDLER, REVERSE ASSY. (19 TEETH) (INC. 42)IDLER, REVERSE ASSY. (19 TEETH) (INC. 42)
-
180602-018 BEARINGBEARING
-
190602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
208050-242 WASHERWASHER
-
218002-130 SCREW, CAPSCREW, CAP
-
220602-466 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
230602-085 FORK, SHIFTFORK, SHIFT
-
240702-291 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
250602-479 PLUG, DRAINPLUG, DRAIN
-
260602-021 SEAL, O-RINGSEAL, O-RING
-
270623-542 PIN, ROLLPIN, ROLL
-
281602-012 STICK, OIL LEVELSTICK, OIL LEVEL
-
290602-366 ALIGNER, IDLER, PINALIGNER, IDLER, PIN
-
301602-013 O-RING, TUBE, OIL LEVEL STICKO-RING, TUBE, OIL LEVEL STICK
-
310702-170 SPROCKET ASSY. (39 TEETH) (INC. 32, 38)SPROCKET ASSY. (39 TEETH) (INC. 32, 38)
-
320602-016 . BEARING. BEARING
-
330123-430 . NUT, LOCK. NUT, LOCK
-
340623-182 . SCREW, CAP. SCREW, CAP
-
350602-138 . SPRING, COMPRESSION. SPRING, COMPRESSION
-
360602-133 . PIN, SLIP. PIN, SLIP
-
370602-144 . RETAINER, SPRING. RETAINER, SPRING
-
390702-260 IDLER, REVERSE ASSY. (24 TEETH) (INC. 18)IDLER, REVERSE ASSY. (24 TEETH) (INC. 18)
-
400602-112 COVER, OIL VENTCOVER, OIL VENT
-
410623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
421602-011 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
-
461602-045 BEARINGBEARING
-
471602-044 WASHER, THRUSTWASHER, THRUST
-
488070-153 PIN, SPRINGPIN, SPRING
-
491602-046 WASHER, TAB LOCKWASHER, TAB LOCK
