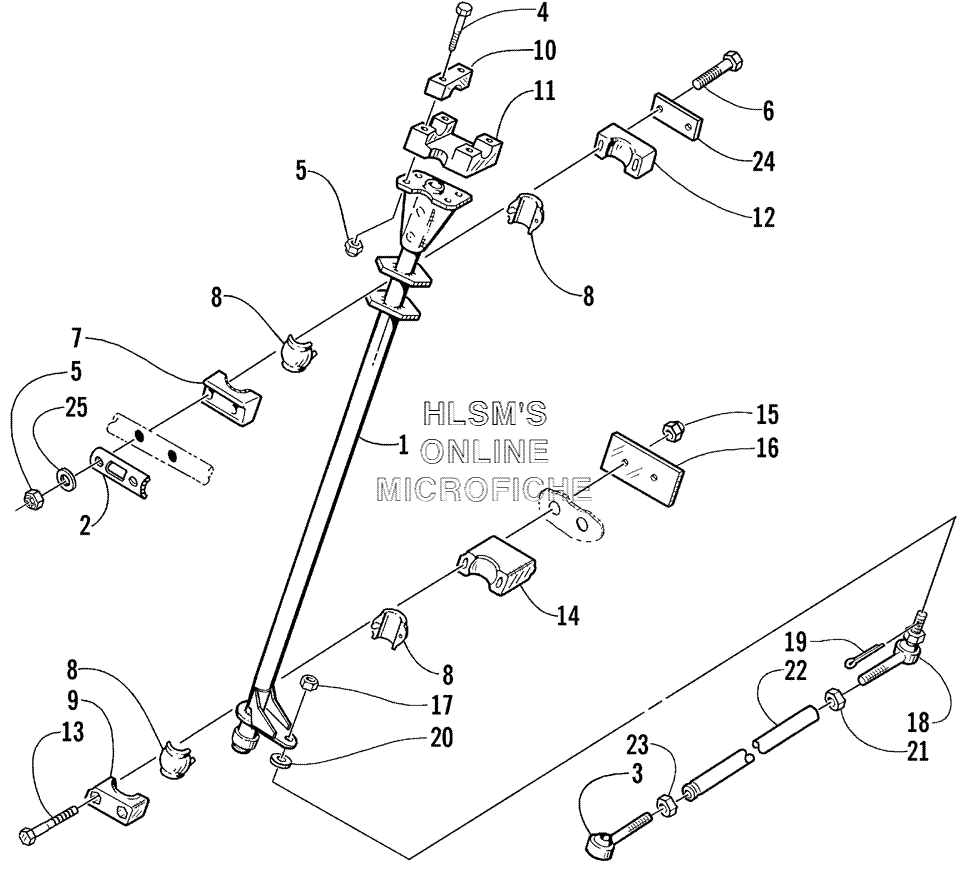

STEERING POST ASSY. для Arctic Cat ZL 440 - 2000 года выпуска
-
№АртикулНазвание
-
20605-331 PLATE, BACKING, STEERING SUPPORTPLATE, BACKING, STEERING SUPPORT
-
30605-202 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
48002-047 SCREW, CAPSCREW, CAP
-
58040-366 NUT, LOCKNUT, LOCK
-
68002-053 SCREW, CAPSCREW, CAP
-
70605-147 HOUSING, BEARING (UPPER)HOUSING, BEARING (UPPER)
-
80605-149 BEARING, HALFBEARING, HALF
-
90605-406 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
100105-350 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
110105-351 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
120605-171 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
138002-143 SCREW, CAPSCREW, CAP
-
140605-407 HOUSING, BEARING (LOWER)HOUSING, BEARING (LOWER)
-
158040-426 NUT, LOCKNUT, LOCK
-
160605-385 PLATE, BACKINGPLATE, BACKING
-
170623-025 NUT, LOCKNUT, LOCK
-
180605-405 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
190623-175 PIN, COTTERPIN, COTTER
-
200623-044 WASHERWASHER
-
210123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
220605-404 TUBE, TIE RODTUBE, TIE ROD
-
230623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
240605-328 STOP, STEERINGSTOP, STEERING
-
258050-217 WASHERWASHER
