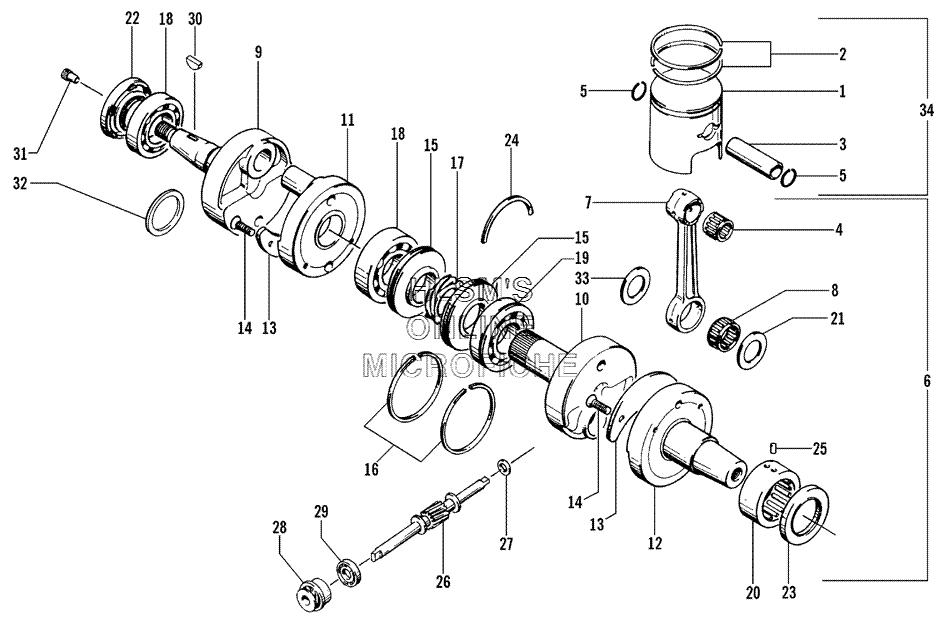

PISTON AND CRANKSHAFT для Arctic Cat ZL 440 - 2000 года выпуска
-
№АртикулНазвание
-
13005-384 PISTONPISTON
-
23002-738 RING ASSY.RING ASSY.
-
33003-732 PIN, PISTONPIN, PISTON
-
43003-107 BEARING, PISTON PINBEARING, PISTON PIN
-
53003-537 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63005-558 CRANKSHAFT ASSY. (INC. 7, 21)CRANKSHAFT ASSY. (INC. 7, 21)
-
73002-166 . ROD, CONNECTING. ROD, CONNECTING
-
83003-744 . BEARING, CRANK PIN. BEARING, CRANK PIN
-
93005-336 . CRANKSHAFT (RIGHT). CRANKSHAFT (RIGHT)
-
103005-559 . CRANKSHAFT (CENTER). CRANKSHAFT (CENTER)
-
113005-300 . WHEEL. WHEEL
-
123005-557 . CRANKSHAFT (LEFT) (INC. 21). CRANKSHAFT (LEFT) (INC. 21)
-
133003-742 . BALANCER. BALANCER
-
143004-372 . SCREW, MACHINE. SCREW, MACHINE
-
153003-654 . RACE (MIDDLE) SEAL. RACE (MIDDLE) SEAL
-
163003-655 . RING. RING
-
173005-385 . GEAR, OIL PUMP DRIVE. GEAR, OIL PUMP DRIVE
-
183002-624 . BEARING, CRANKSHAFT. BEARING, CRANKSHAFT
-
193003-743 . BEARING, CRANKSHAFT (CENTER). BEARING, CRANKSHAFT (CENTER)
-
203003-677 . BEARING, CRANKSHAFT (LEFT). BEARING, CRANKSHAFT (LEFT)
-
213005-458 . WASHER, CRANK PIN. WASHER, CRANK PIN
-
223002-717 SEAL, OIL (RIGHT)SEAL, OIL (RIGHT)
-
233003-657 SEAL, OIL (LEFT)SEAL, OIL (LEFT)
-
243003-736 C, RINGC, RING
-
253003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
263005-337 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
273005-049 SHIM, OIL PUMP SHAFT, T:1.3 MMSHIM, OIL PUMP SHAFT, T:1.3 MM
-
283402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
293004-760 SEAL, WATER, OIL PUMPSEAL, WATER, OIL PUMP
-
303004-540 KEYKEY
-
313002-721 BUSHING, TACHOMETERBUSHING, TACHOMETER
-
323008-501 WASHERWASHER
-
333005-450 SHIMSHIM
-
343005-586 PISTON ASSY. (INC. 1, 2, AND 5)PISTON ASSY. (INC. 1, 2, AND 5)
