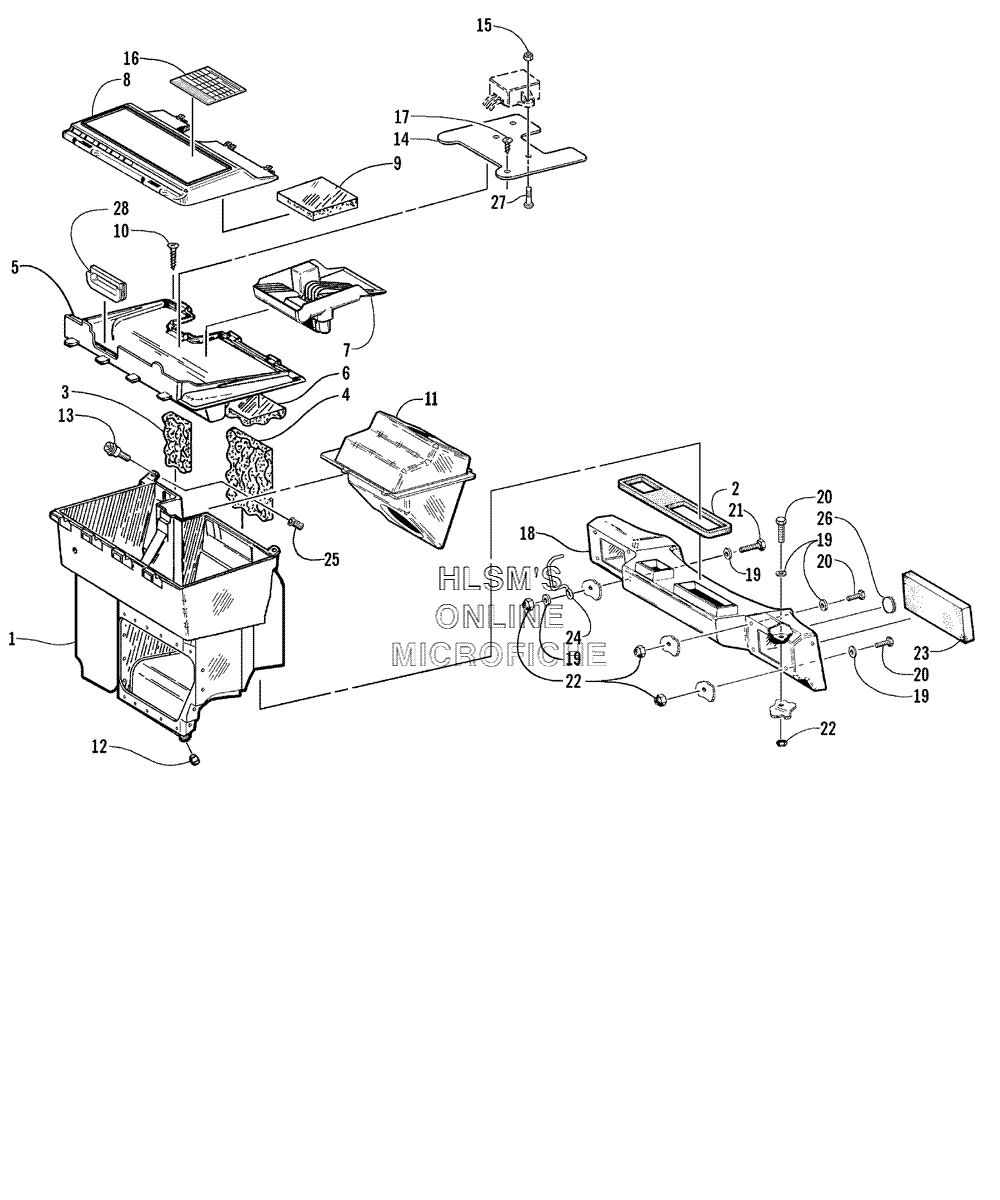

AIR SILENCER ASSY. для Arctic Cat ZR 2K - 2000 года выпуска
-
№АртикулНазвание
-
10770-347 AIR SILENCER ASSY.AIR SILENCER ASSY.
-
20617-245 SEAL, AIR SILENCER PLENUMSEAL, AIR SILENCER PLENUM
-
30617-252 FOAM, AIR SILENCER, BACK MAGFOAM, AIR SILENCER, BACK MAG
-
40617-253 FOAM, AIR SILENCER, BACK PTOFOAM, AIR SILENCER, BACK PTO
-
50770-349 COVER, AIR SILENCERCOVER, AIR SILENCER
-
60617-251 FOAM, AIR SILENCER, TOP LIDFOAM, AIR SILENCER, TOP LID
-
70670-826 TRAY, MANUAL, TOOLBOXTRAY, MANUAL, TOOLBOX
-
80670-729 COVER, TOOLBOXCOVER, TOOLBOX
-
90617-294 FOAM, TOOLBOX (UPPER)FOAM, TOOLBOX (UPPER)
-
100623-770 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110670-879 RESONATOR, Q, WAVE, INLETRESONATOR, Q, WAVE, INLET
-
121606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
130623-780 SCREW, HEX SHOULDERSCREW, HEX SHOULDER
-
141606-760 PLATE, CDIPLATE, CDI
-
158041-366 NUT, LOCKNUT, LOCK
-
163611-630 DECAL, JET CHART (ZR)DECAL, JET CHART (ZR)
-
170623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180670-828 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
198050-222 WASHERWASHER
-
208002-040 SCREW, CAPSCREW, CAP
-
218002-042 SCREW, CAPSCREW, CAP
-
228040-366 NUT, LOCKNUT, LOCK
-
230617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
240645-269 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
250623-627 INSERTINSERT
-
260623-078 DISC, VELCRODISC, VELCRO
-
278017-580 SCREW, MACHINESCREW, MACHINE
-
280670-827 GROMMET, ECUGROMMET, ECU
