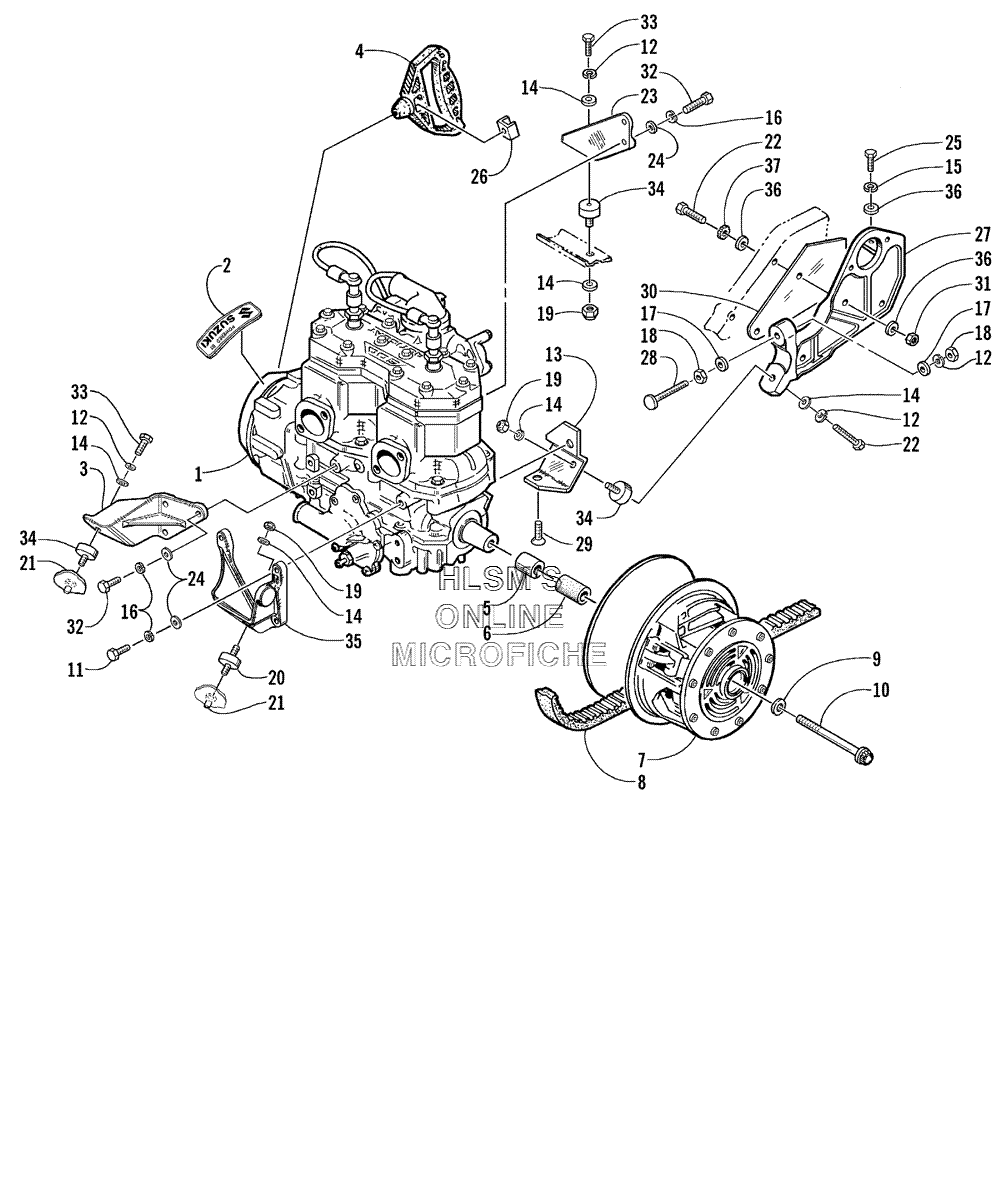

ENGINE AND RELATED PARTS для Arctic Cat ZR 2K - 2000 года выпуска
-
№АртикулНазвание
-
10662-239 ENGINE, AE60L1ENGINE, AE60L1
-
21611-588 DECAL, ENGINEDECAL, ENGINE
-
30708-102 BRACKET, ENGINE MOUNTING (RIGHT) FRONTBRACKET, ENGINE MOUNTING (RIGHT) FRONT
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
50646-107 SPACER, ALUMINUMSPACER, ALUMINUM
-
60646-106 SPACER, URETHANESPACER, URETHANE
-
70725-284 CLUTCH, DRIVECLUTCH, DRIVE
-
80627-020 BELT, DRIVEBELT, DRIVE
-
90623-210 WASHER, LOCKWASHER, LOCK
-
100623-206 BOLT, CLUTCHBOLT, CLUTCH
-
118012-134 SCREW, CAPSCREW, CAP
-
128051-277 WASHER, LOCKWASHER, LOCK
-
130708-091 BRACKET, ENGINE MOUNTING (LEFT) REARBRACKET, ENGINE MOUNTING (LEFT) REAR
-
148050-277 WASHERWASHER
-
158051-217 WASHER, LOCKWASHER, LOCK
-
168051-247 WASHER, LOCKWASHER, LOCK
-
178050-282 WASHERWASHER
-
188042-486 NUTNUT
-
198040-486 NUTNUT
-
200608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
210623-699 INSERT, THREADEDINSERT, THREADED
-
228002-226 SCREW, CAPSCREW, CAP
-
230708-104 BRACKET, ENGINE MOUNTING (RIGHT) REARBRACKET, ENGINE MOUNTING (RIGHT) REAR
-
248050-247 WASHERWASHER
-
258002-040 SCREW, CAPSCREW, CAP
-
260606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
270708-054 BRACKET, ENGINE MOUNTING/ BEARING SUPPORTBRACKET, ENGINE MOUNTING/ BEARING SUPPORT
-
280608-197 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
290623-095 SCREW, MACHINESCREW, MACHINE
-
300608-306 SPACER, BEARING SUPPORTSPACER, BEARING SUPPORT
-
310623-026 NUT, LOCKNUT, LOCK
-
328012-132 SCREW, CAPSCREW, CAP
-
338002-222 SCREW, CAPSCREW, CAP
-
340608-217 MOUNT, ENGINEMOUNT, ENGINE
-
350708-103 BRACKET, ENGINE MOUNTING (LEFT) FRONTBRACKET, ENGINE MOUNTING (LEFT) FRONT
-
360623-044 WASHERWASHER
-
378053-272 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
