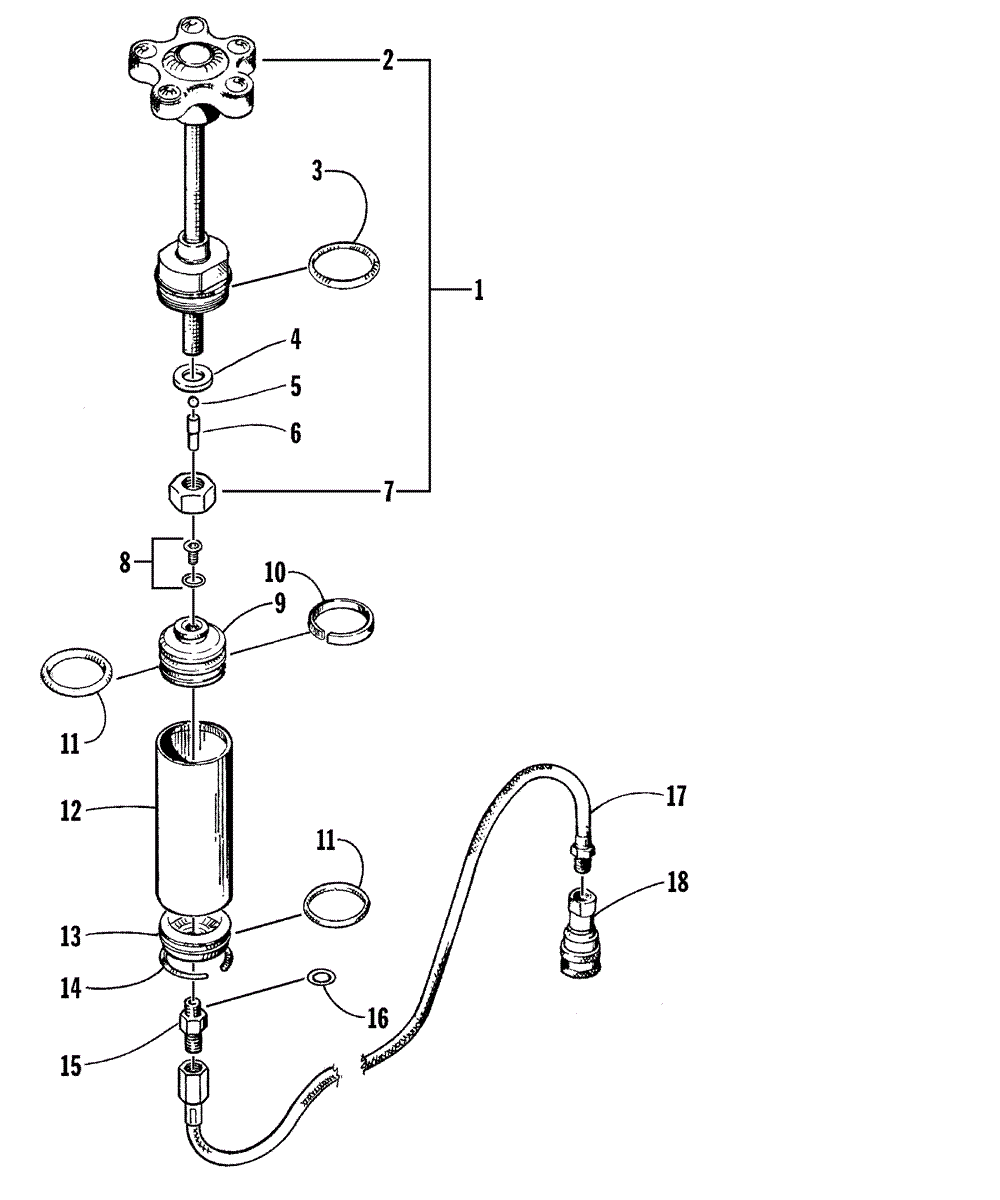

REMOTE SHOCK LIMITER ASSY. для Arctic Cat ZR 2K - 2000 года выпуска
-
№АртикулНазвание
-
-1604-191 FRONT ARM COMPLETE ASSY.FRONT ARM COMPLETE ASSY.
-
11604-314 ENDCAP AND ADJUSTER KNOB ASSY. (INC. 2, 7)ENDCAP AND ADJUSTER KNOB ASSY. (INC. 2, 7)
-
21604-252 KNOB, ADJUSTER, W/SHAFTKNOB, ADJUSTER, W/SHAFT
-
30603-294 O-RINGO-RING
-
40603-389 WASHER, BACKUPWASHER, BACKUP
-
51604-315 BALL, ADJUSTERBALL, ADJUSTER
-
61604-254 PIN, DOWELPIN, DOWEL
-
71604-253 NUT, STOP, ADJUSTABLE KNOBNUT, STOP, ADJUSTABLE KNOB
-
81604-316 SCREW, RELIEF, W/O O-RINGSCREW, RELIEF, W/O O-RING
-
90704-329 PISTON, INTERNAL FLOATING W/O STRAPPISTON, INTERNAL FLOATING W/O STRAP
-
100603-393 STRAP, PISTONSTRAP, PISTON
-
110603-675 O-RINGO-RING
-
120604-528 BODY, ADJUSTER, RESERVOIRBODY, ADJUSTER, RESERVOIR
-
131604-319 ENDCAP, RESERVOIRENDCAP, RESERVOIR
-
141604-258 RETAINERRETAINER
-
151604-317 FITTING, RESERVOIR ENDCAPFITTING, RESERVOIR ENDCAP
-
161604-318 O-RING, ENDCAP FITTINGO-RING, ENDCAP FITTING
-
171604-256 HOSE, EXTENSION, TEFLONHOSE, EXTENSION, TEFLON
-
181604-257 COUPLER, FEMALE, ENDCOUPLER, FEMALE, END
