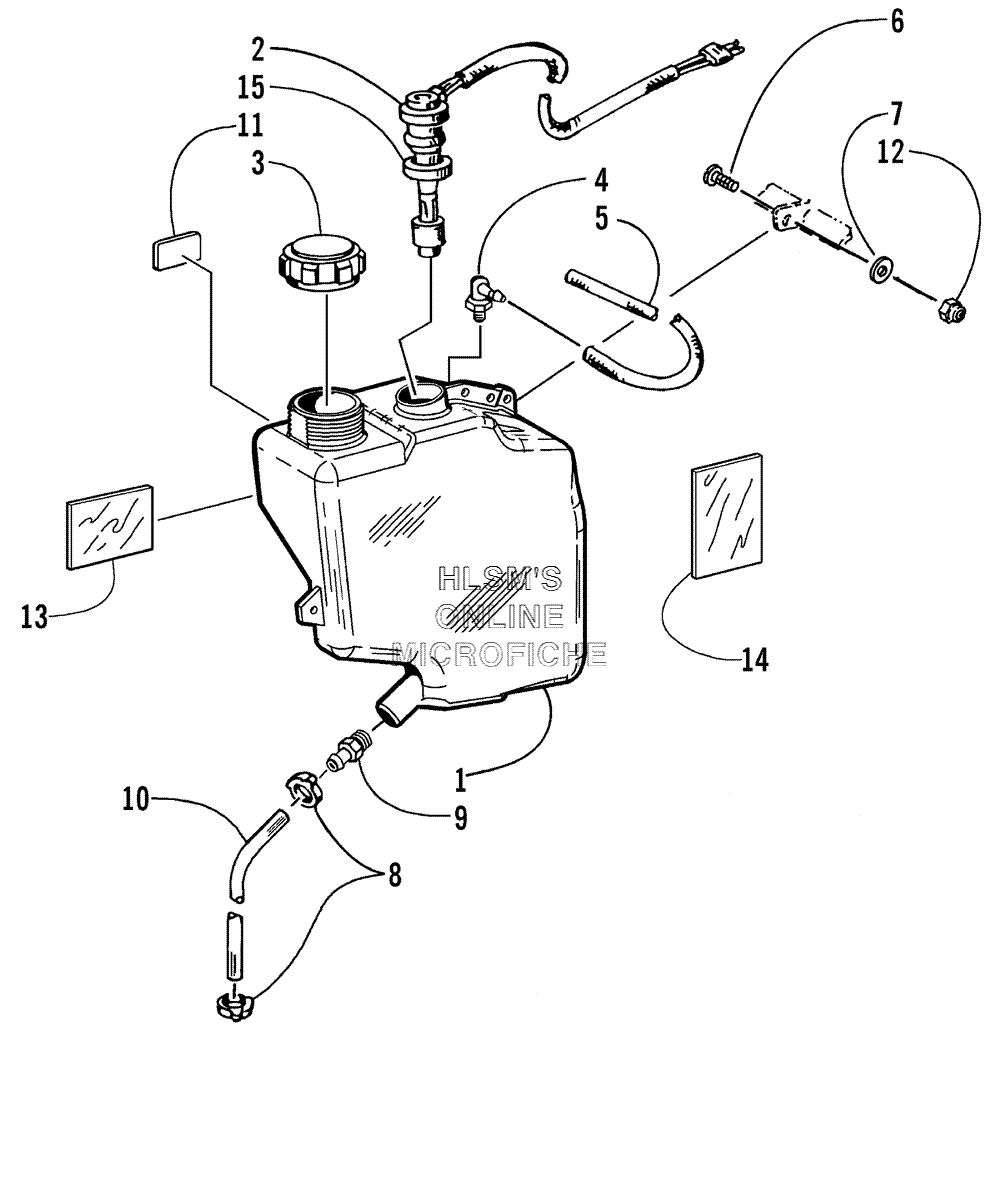

OIL TANK ASSY. для Arctic Cat ZR 2K - 2000 года выпуска
-
№АртикулНазвание
-
10670-925 TANK, OILTANK, OIL
-
20609-236 SENSOR, LOW OILSENSOR, LOW OIL
-
30670-341 CAP, TANKCAP, TANK
-
40670-242 VENT, TANKVENT, TANK
-
50610-010 HOSE, VENTHOSE, VENT
-
68017-580 SCREW, MACHINESCREW, MACHINE
-
78050-217 WASHERWASHER
-
80124-045 CLAMPCLAMP
-
90670-733 OUTLET, OIL TANKOUTLET, OIL TANK
-
100610-015 HOSE, OIL LINE (100 FT)HOSE, OIL LINE (100 FT)
-
100610-016 HOSE, OIL LINE (25 FT)HOSE, OIL LINE (25 FT)
-
111611-564 DECAL, OIL TANKDECAL, OIL TANK
-
128040-366 NUT, LOCKNUT, LOCK
-
130716-348 FOIL, TAPEFOIL, TAPE
-
140619-206 FOIL, TAPEFOIL, TAPE
-
150609-237 SEAL, GROMMET, OIL SENSORSEAL, GROMMET, OIL SENSOR
