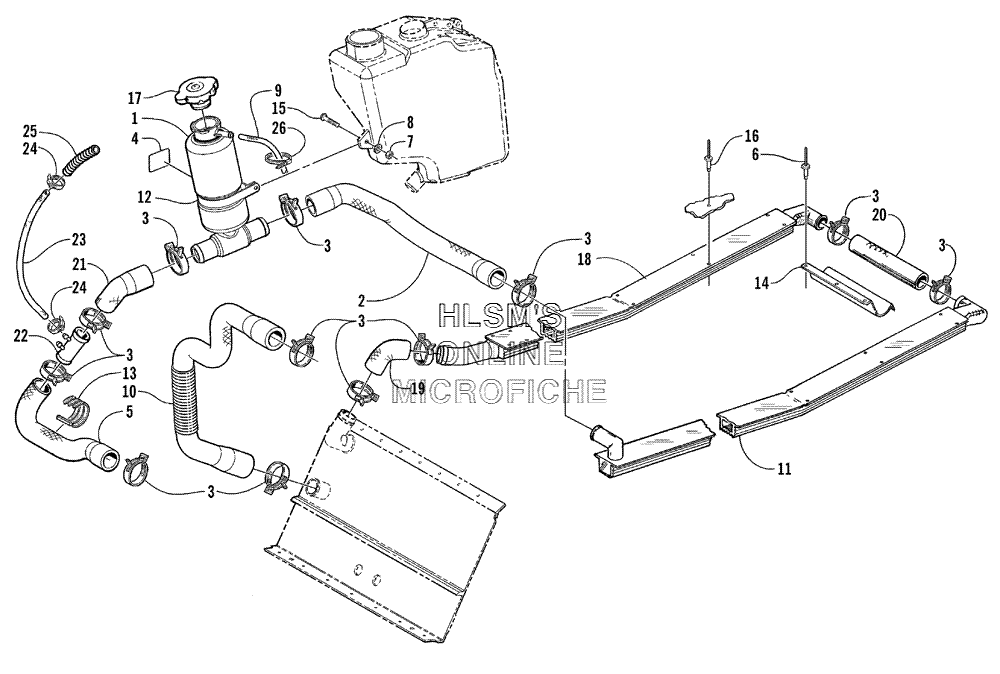

COOLING ASSEMBLY для Arctic Cat ZR 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20610-379 HOSE, COOLANT TANK/LEFT HEAT EXCHANGERHOSE, COOLANT TANK/LEFT HEAT EXCHANGER
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
42611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
50610-386 HOSE, ENGINE/T, FITTINGHOSE, ENGINE/T, FITTING
-
68060-504 RIVETRIVET
-
78040-366 NUT, LOCKNUT, LOCK
-
88050-217 WASHERWASHER
-
90610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
90610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
100610-418 HOSE, COOLANT, ENGINE/ FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/ FRONT HEAT EXCHANGER
-
110716-921 HEAT EXCHANGER TUBE (LEFT)HEAT EXCHANGER TUBE (LEFT)
-
120623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
130623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
140616-810 GUARD, COOLANT HOSEGUARD, COOLANT HOSE
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168060-706 RIVETRIVET
-
170606-268 CAP, FILLER NECKCAP, FILLER NECK
-
180716-920 HEAT EXCHANGER TUBE (RIGHT)HEAT EXCHANGER TUBE (RIGHT)
-
190610-244 HOSE, COOLANT HEAT EXCHANGER (FRONT/ RIGHT HEAT EXCHANGER)HOSE, COOLANT HEAT EXCHANGER (FRONT/ RIGHT HEAT EXCHANGER)
-
200610-215 HOSE, COOLANT (REAR)HOSE, COOLANT (REAR)
-
210610-192 HOSE, COOLANT, COOLANT TANK/T, FITTINGHOSE, COOLANT, COOLANT TANK/T, FITTING
-
220616-065 T, FITTING, DOUBLET, FITTING, DOUBLE
-
230610-076 HOSE, WATER (10 FT)HOSE, WATER (10 FT)
-
240623-373 CLAMP, HOSECLAMP, HOSE
-
250610-082 COVER, HOSECOVER, HOSE
-
260123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
