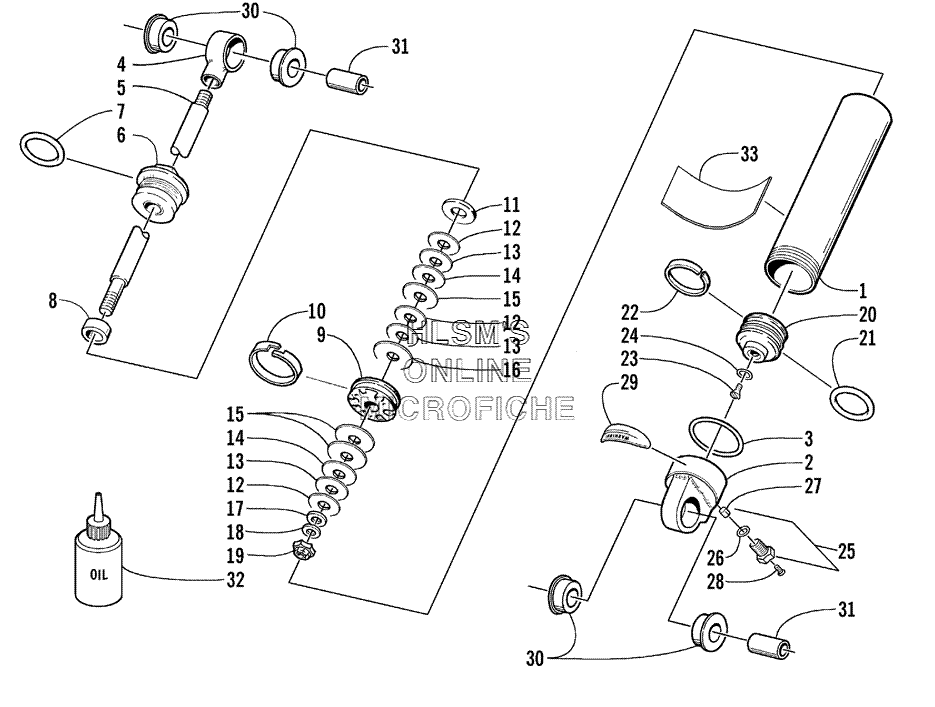

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
-0704-468 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-544 BODY, SHOCKBODY, SHOCK
-
21604-294 END CAP, SHOCKEND CAP, SHOCK
-
31604-280 O-RING, END CAPO-RING, END CAP
-
40704-483 EYELETEYELET
-
51604-543 ROD, SHOCKROD, SHOCK
-
60704-382 CAP, SHOCK (INC. 5)CAP, SHOCK (INC. 5)
-
71604-271 . O-RING. O-RING
-
81604-364 SPACER, SHAFTSPACER, SHAFT
-
91603-189 PISTON, 0.046 IN. ORIFICEPISTON, 0.046 IN. ORIFICE
-
101604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
111604-272 WASHER, TOP OUTWASHER, TOP OUT
-
121603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
131603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
141603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
151603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
161603-132 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
171603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
181604-273 WASHER, BACKUPWASHER, BACKUP
-
190623-696 NUT, LOCKNUT, LOCK
-
201604-276 PISTON, FLOATINGPISTON, FLOATING
-
211604-277 O-RINGO-RING
-
221604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
230623-697 SCREW, RELIEFSCREW, RELIEF
-
241604-279 O-RINGO-RING
-
250704-383 VALVE, PRESSURE (INC. 26, 27)VALVE, PRESSURE (INC. 26, 27)
-
261604-284 . O-RING. O-RING
-
280624-433 SCREW, VALVESCREW, VALVE
-
293611-007 DECAL, WARNINGDECAL, WARNING
-
301604-262 BUSHING, SHOCKBUSHING, SHOCK
-
311604-397 SLEEVE, EYELETSLEEVE, EYELET
-
321639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
333611-691 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
