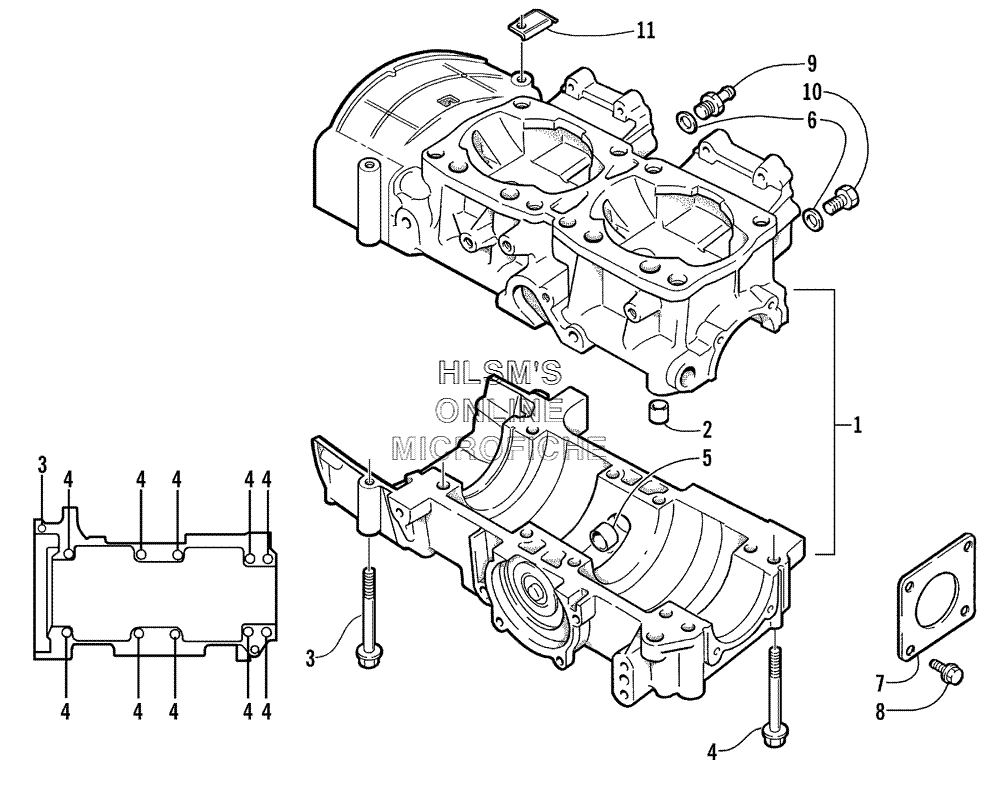

CRANKCASE ASSEMBLY для Arctic Cat ZR 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
13005-664 CRANKCASE ASSEMBLY (INC. 2, 6)CRANKCASE ASSEMBLY (INC. 2, 6)
-
23005-206 . PIN, DOWEL. PIN, DOWEL
-
33004-881 BOLTBOLT
-
43005-514 SCREW, CAPSCREW, CAP
-
53003-647 BUSHING, OIL PUMP, INLET SHAFTBUSHING, OIL PUMP, INLET SHAFT
-
63002-276 GASKETGASKET
-
73004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
83004-377 BOLT, OIL SEAL PLATEBOLT, OIL SEAL PLATE
-
93002-040 UNION, HOSEUNION, HOSE
-
103002-028 PLUG, CRANKCASEPLUG, CRANKCASE
-
110608-117 BRACKET, GROUND WIRE, ENGINEBRACKET, GROUND WIRE, ENGINE
