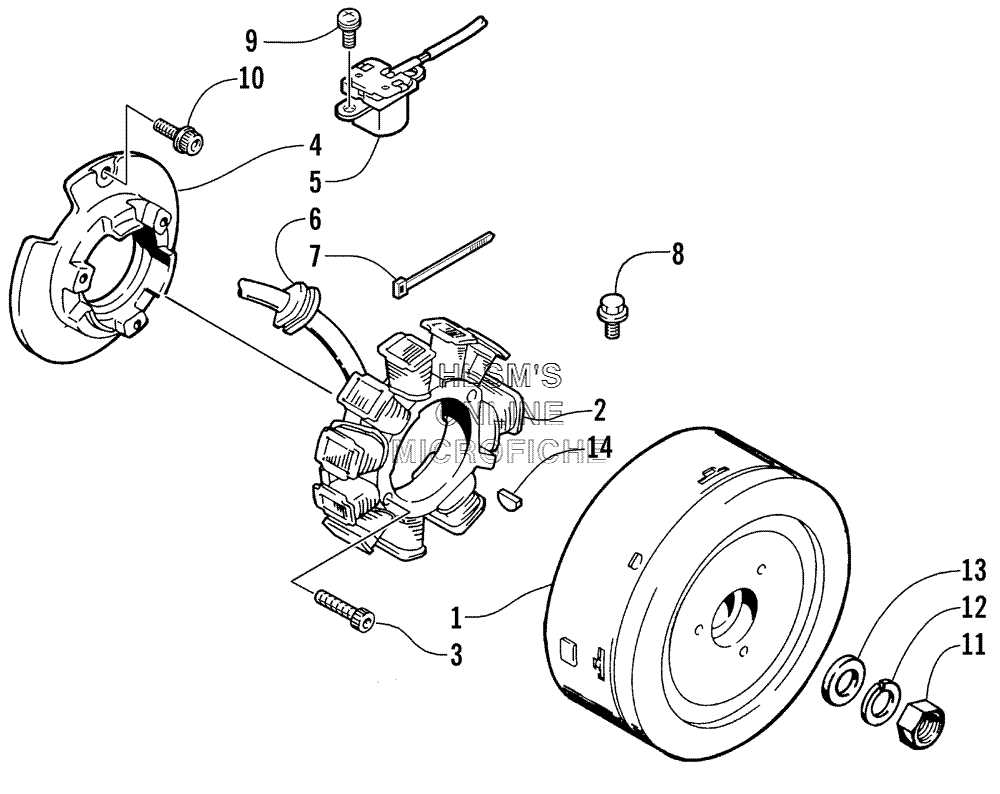

MAGNETO для Arctic Cat ZR 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
13005-698 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
23005-699 STATOR ASSEMBLYSTATOR ASSEMBLY
-
33005-524 SCREW, MACHINESCREW, MACHINE
-
43005-487 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
53004-073 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
63005-511 GROMMET, LEAD WIREGROMMET, LEAD WIRE
-
73003-787 CABLE TIECABLE TIE
-
83004-338 BOLTBOLT
-
93004-706 SCREWSCREW
-
103004-378 BOLTBOLT
-
110691-370 NUTNUT
-
123004-345 WASHER, LOCKWASHER, LOCK
-
133005-175 WASHERWASHER
-
143004-540 KEYKEY
