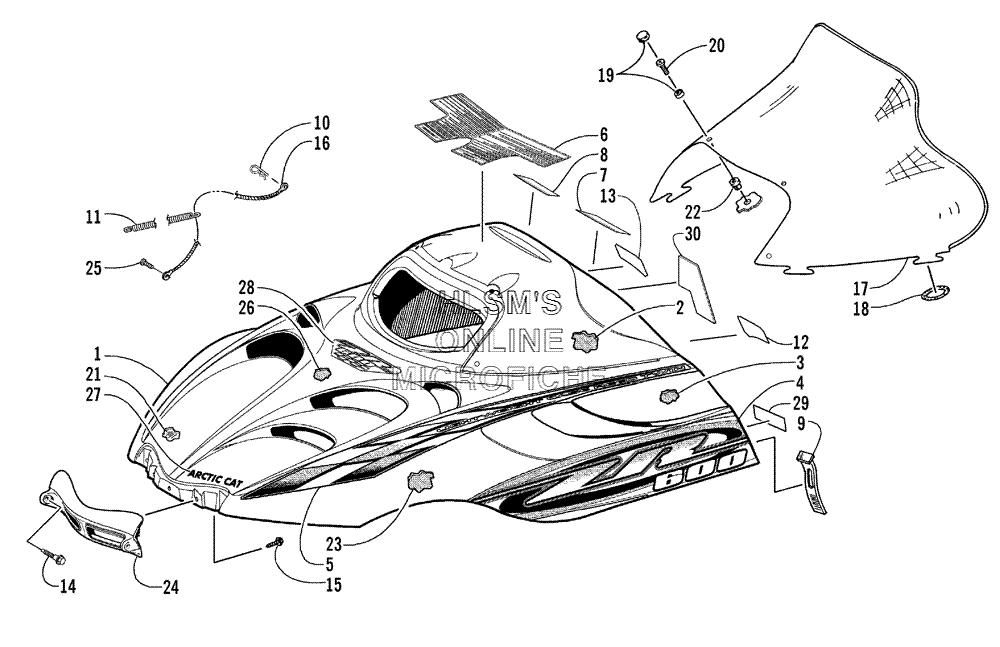

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat ZR 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
10718-812 HOOD W/O DECALSHOOD W/O DECALS
-
10718-826 HOOD W/DECALSHOOD W/DECALS
-
20617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
20617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
30617-322 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
30617-323 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
43611-496 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
43611-497 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
53611-500 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
53611-501 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
63611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
73611-486 DECAL, CAUTION, ENGINE/BATTERY (ENGLISH)DECAL, CAUTION, ENGINE/BATTERY (ENGLISH)
-
83611-487 DECAL, CAUTION, ENGINE/BATTERY (FRENCH)DECAL, CAUTION, ENGINE/BATTERY (FRENCH)
-
91606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
100623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
110123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
123611-488 DECAL, CAUTION, FUEL (ENGLISH)DECAL, CAUTION, FUEL (ENGLISH)
-
133611-489 DECAL, CAUTION, FUEL (FRENCH)DECAL, CAUTION, FUEL (FRENCH)
-
140623-690 SCREW, MACHINESCREW, MACHINE
-
150623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
161606-158 CABLE, HOODCABLE, HOOD
-
171606-696 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-413 SCREW, MACHINESCREW, MACHINE
-
211606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
211606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
230617-326 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
230617-327 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
241606-941 HINGE, HOODHINGE, HOOD
-
250623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
260617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
273611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
283611-492 DECAL, HOOD (CENTER)DECAL, HOOD (CENTER)
-
293611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER
- GAS TANK AND FUEL PUMP ASSEMBLIES
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- • HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSEMBLY
- RELATED ITEMS
- SEAT AND TAILLIGHT ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY (STD- INT- LE-R)
- STEERING POST ASSEMBLY
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND REAR BUMPER
- WATER PUMP AND THERMOSTAT
