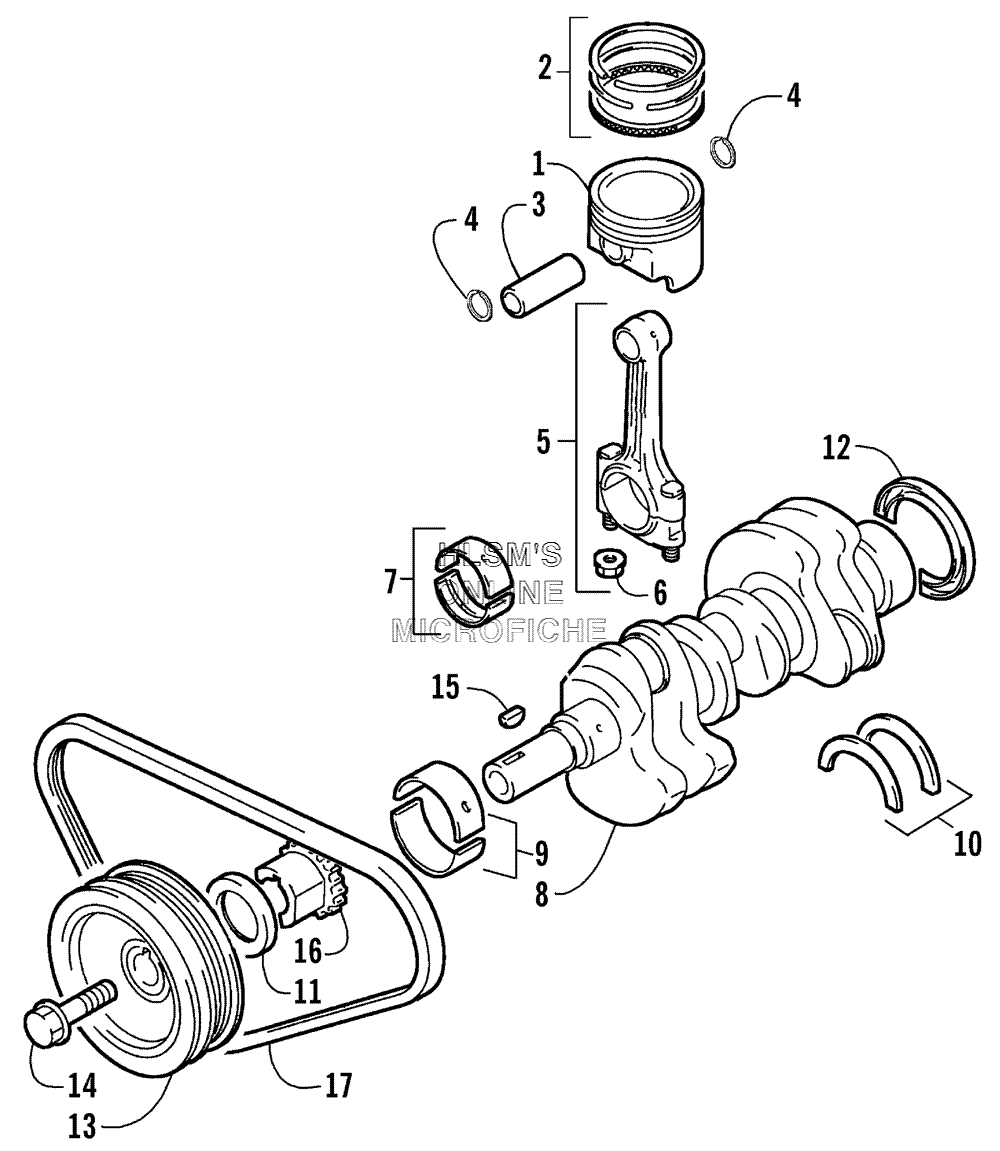

CRANKSHAFT ASSY. для Arctic Cat 4-STROKE TRAIL - 2002 года выпуска
-
№АртикулНазвание
-
13006-145 PISTON (MARK 1)PISTON (MARK 1)
-
13006-146 PISTON (MARK 2)PISTON (MARK 2)
-
13006-297 PISTON (OVERSIZED 0.5 MM)PISTON (OVERSIZED 0.5 MM)
-
23006-147 RING SET, PISTONRING SET, PISTON
-
23006-298 RING SET, PISTON (OVERSIZED 0.5 MM)RING SET, PISTON (OVERSIZED 0.5 MM)
-
33006-148 PIN, PISTONPIN, PISTON
-
43006-127 CIRCLIPCIRCLIP
-
53006-149 CONNECTING ROD ASSY. (INC. 6)CONNECTING ROD ASSY. (INC. 6)
-
63006-110 NUTNUT
-
73006-150 BEARING, CONNECTING RODBEARING, CONNECTING ROD
-
83006-151 CRANKSHAFTCRANKSHAFT
-
93006-153 BEARING SET (GREEN)BEARING SET (GREEN)
-
93006-154 BEARING SET (BLACK)BEARING SET (BLACK)
-
93006-155 BEARING SET (NO COLOR)BEARING SET (NO COLOR)
-
93006-156 BEARING SET (YELLOW)BEARING SET (YELLOW)
-
93006-152 BEARING SET (BROWN)BEARING SET (BROWN)
-
103006-157 BEARING SET, CRANKSHAFT THRUSTBEARING SET, CRANKSHAFT THRUST
-
103006-299 BEARING SET, CRANKSHAFT THRUST (UNDERSIZED)BEARING SET, CRANKSHAFT THRUST (UNDERSIZED)
-
110693-562 SEAL, OIL, CRANKSHAFT (FRONT)SEAL, OIL, CRANKSHAFT (FRONT)
-
123006-124 SEAL, OIL, CRANKSHAFT (REAR)SEAL, OIL, CRANKSHAFT (REAR)
-
133006-158 PULLEY, CRANKSHAFTPULLEY, CRANKSHAFT
-
143006-159 BOLTBOLT
-
153004-540 KEYKEY
-
163006-160 SPROCKET, CRANKSHAFT TIMINGSPROCKET, CRANKSHAFT TIMING
-
173006-295 BELT, ENGINEBELT, ENGINE
