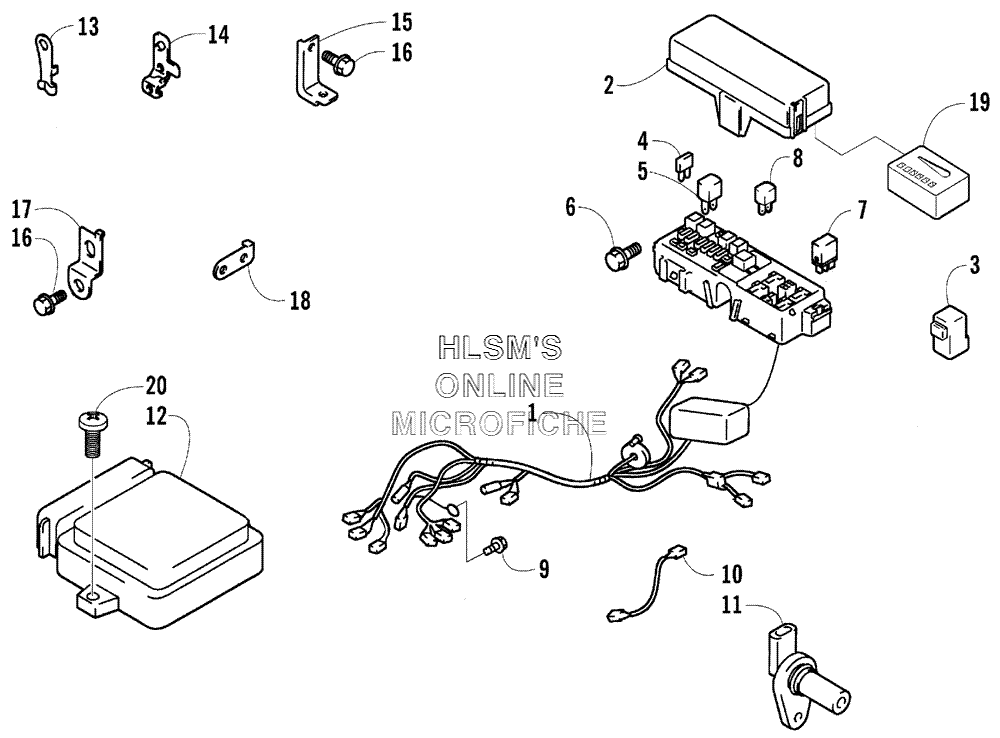

ELECTRICAL для Arctic Cat 4-STROKE TRAIL - 2002 года выпуска
-
№АртикулНазвание
-
13006-283 HARNESS ASSY. (INC. 2, 6)HARNESS ASSY. (INC. 2, 6)
-
23006-288 COVER, FUSE BOXCOVER, FUSE BOX
-
33006-293 RELAY ASSY.RELAY ASSY.
-
43006-368 FUSE (15 AMP)FUSE (15 AMP)
-
43006-369 FUSE (30 AMP)FUSE (30 AMP)
-
53006-370 FUSE (80 AMP)FUSE (80 AMP)
-
63006-109 BOLTBOLT
-
73006-294 RELAYRELAY
-
93004-705 BOLT, GROUNDBOLT, GROUND
-
103006-289 WIRE, OIL PRESSURE SWITCHWIRE, OIL PRESSURE SWITCH
-
113006-279 SENSOR, CAM POSITION, ASSY.SENSOR, CAM POSITION, ASSY.
-
123006-282 CONTROLLER, INJECTIONCONTROLLER, INJECTION
-
133006-290 CLAMP, OIL PRESSURE SWITCHCLAMP, OIL PRESSURE SWITCH
-
143006-287 BRACKET, CHAIN COVERBRACKET, CHAIN COVER
-
153006-286 BRACKET, COILBRACKET, COIL
-
163004-338 BOLTBOLT
-
173006-285 BRACKET, COILBRACKET, COIL
-
183006-284 BRACKET, ENGINE HARNESSBRACKET, ENGINE HARNESS
-
190617-429 FOAM, FUSE BOX COVERFOAM, FUSE BOX COVER
-
208476-625 SCREW, MACHINESCREW, MACHINE
