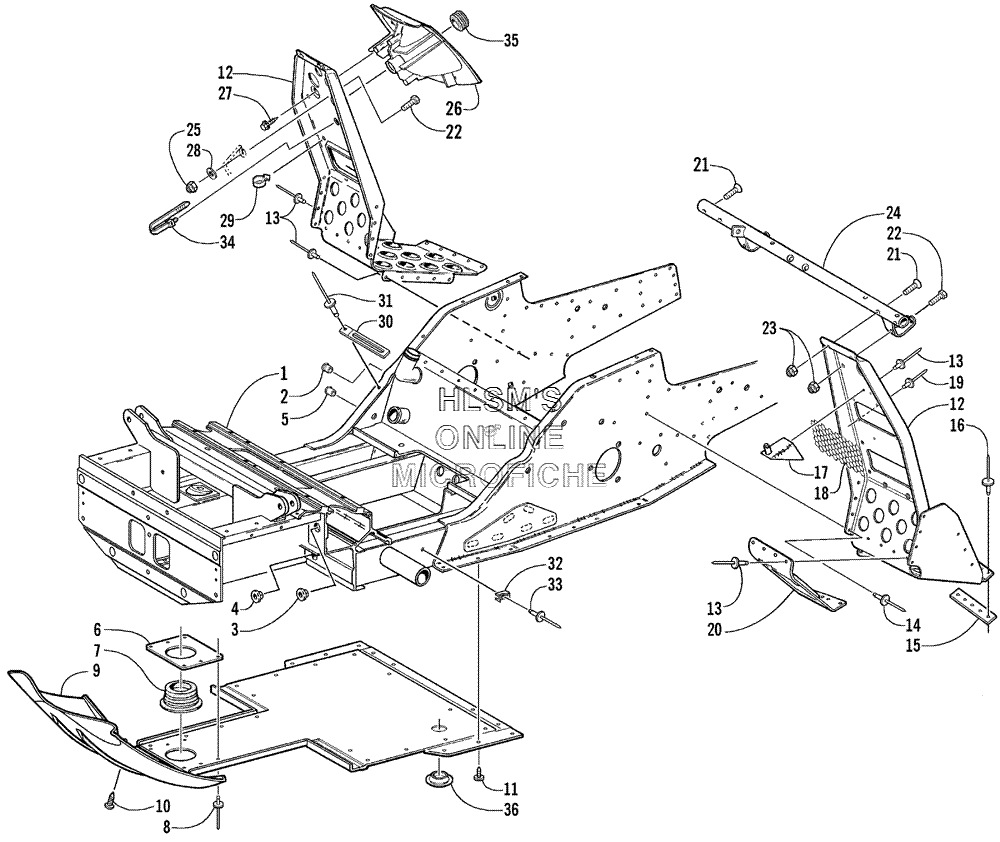

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat 4-STROKE TRAIL - 2002 года выпуска
-
№АртикулНазвание
-
10707-654 CHASSIS ASSY. (INC. 2, 5)CHASSIS ASSY. (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
40607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
50623-582 INSERTINSERT
-
61612-389 RING, EXHAUST OUTLETRING, EXHAUST OUTLET
-
71612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
88060-508 RIVETRIVET
-
91706-284 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
121706-884 FOOTREST (RIGHT) (BLACK)FOOTREST (RIGHT) (BLACK)
-
121706-885 FOOTREST (LEFT) (BLACK)FOOTREST (LEFT) (BLACK)
-
130623-166 RIVETRIVET
-
140623-341 RIVETRIVET
-
150616-701 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
160623-282 RIVETRIVET
-
170705-173 BRACKET, MOUNTING, GUARDBRACKET, MOUNTING, GUARD
-
181606-912 SCREEN, GUARDSCREEN, GUARD
-
198060-704 RIVETRIVET
-
201706-886 PLATE, BACKING (RIGHT) (BLACK)PLATE, BACKING (RIGHT) (BLACK)
-
201706-887 PLATE, BACKING (LEFT) (BLACK)PLATE, BACKING (LEFT) (BLACK)
-
218019-614 SCREW, MACHINESCREW, MACHINE
-
228002-041 SCREW, CAPSCREW, CAP
-
238041-366 NUT, LOCKNUT, LOCK
-
240705-423 SUPPORT, STEERINGSUPPORT, STEERING
-
258040-366 NUT, LOCKNUT, LOCK
-
261606-062 CUP, RECOIL ROPECUP, RECOIL ROPE
-
270623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
288050-212 WASHERWASHER
-
290623-101 CLIP, ROUTINGCLIP, ROUTING
-
303002-964 CLAMP, WIRECLAMP, WIRE
-
318060-504 RIVETRIVET
-
320623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
338060-426 RIVETRIVET
-
340623-677 CABLE TIE, PUSH MOUNTCABLE TIE, PUSH MOUNT
-
350623-831 PLUG, RECOIL CUPPLUG, RECOIL CUP
-
362606-367 PLUG, OIL DRAIN ACCESSPLUG, OIL DRAIN ACCESS
