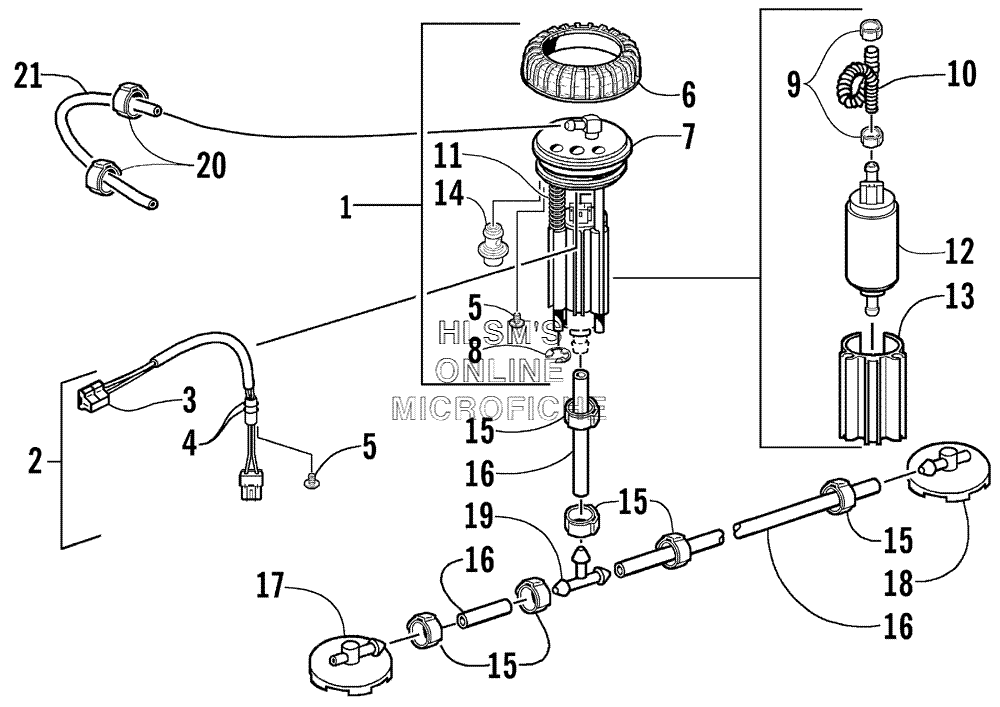

FUEL PUMP ASSY. для Arctic Cat 4-STROKE TRAIL - 2002 года выпуска
-
№АртикулНазвание
-
11670-309 PUMP, FUEL, ASSY. (INC. 2, 14)PUMP, FUEL, ASSY. (INC. 2, 14)
-
21670-117 HARNESS, FUEL PUMP (INC. 3, 4)HARNESS, FUEL PUMP (INC. 3, 4)
-
30670-380 CONNECTOR, HARNESSCONNECTOR, HARNESS
-
40670-381 O-RINGO-RING
-
51670-155 SCREW, MACHINE, HARNESSSCREW, MACHINE, HARNESS
-
61670-119 NUT, RETAINING, FUEL PUMPNUT, RETAINING, FUEL PUMP
-
71670-118 SEAL, FUEL PUMP HOUSINGSEAL, FUEL PUMP HOUSING
-
81670-244 RING, RETAININGRING, RETAINING
-
91670-159 CLAMP, HOSECLAMP, HOSE
-
101670-154 HOSE, FUEL PUMP, TOPHOSE, FUEL PUMP, TOP
-
111670-411 SPRING, FUEL PUMP ASSY.SPRING, FUEL PUMP ASSY.
-
121670-153 PUMP, FUELPUMP, FUEL
-
131670-410 HOUSING, FUEL PUMPHOUSING, FUEL PUMP
-
141670-414 REGULATOR, FUEL PUMPREGULATOR, FUEL PUMP
-
150610-415 CLAMP, HOSECLAMP, HOSE
-
160610-011 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
171670-140 PICKUP, FUELPICKUP, FUEL
-
181670-088 PICKUP, FUELPICKUP, FUEL
-
190670-235 T, FITTINGT, FITTING
-
200610-419 CLAMP, HOSECLAMP, HOSE
-
210610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
