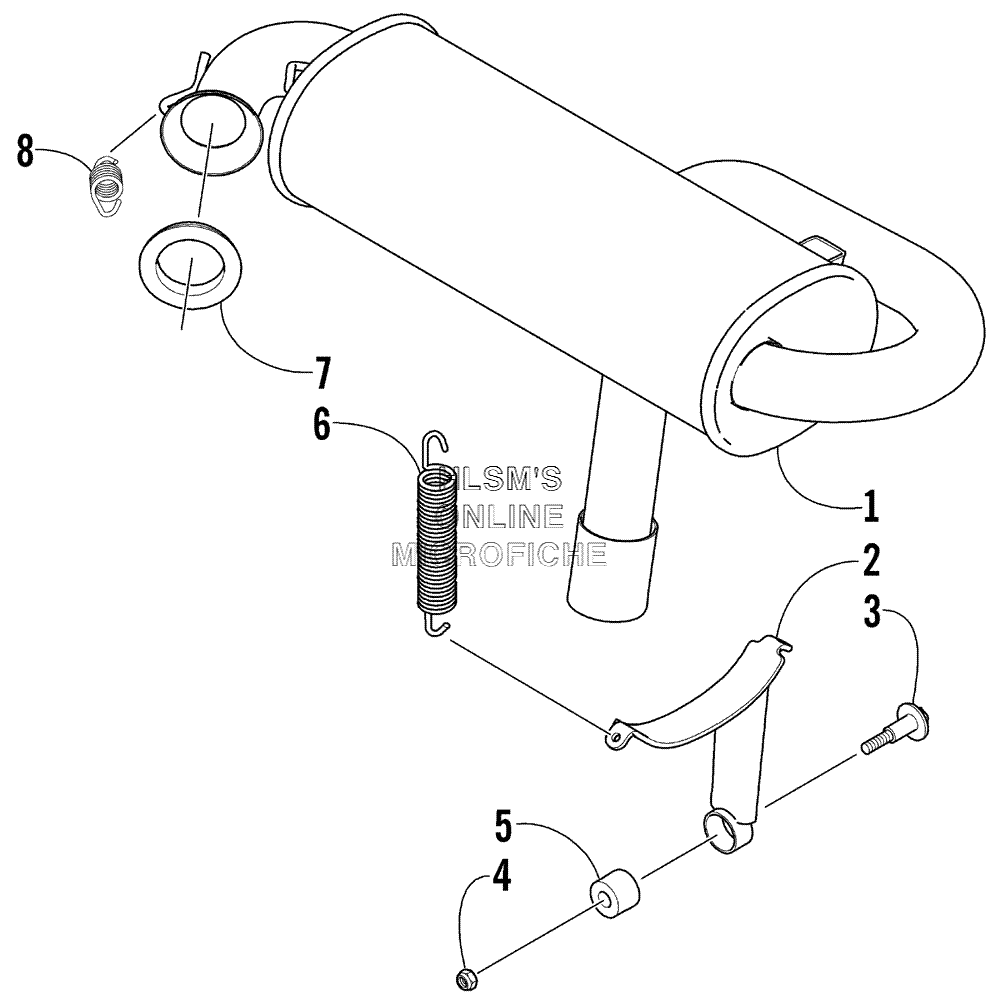

EXHAUST ASSY. для Arctic Cat 4-STROKE TRAIL - 2002 года выпуска
-
№АртикулНазвание
-
10712-847 MUFFLERMUFFLER
-
20712-819 BRACKET, MOUNTING, MUFFLERBRACKET, MOUNTING, MUFFLER
-
30623-856 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
48040-366 NUT, LOCKNUT, LOCK
-
50612-107 BUSHING, RESONATOR, RUBBERBUSHING, RESONATOR, RUBBER
-
60612-543 SPRING, EXTENSIONSPRING, EXTENSION
-
70612-693 GASKET, EXHAUSTGASKET, EXHAUST
-
80612-820 SPRING, EXTENSIONSPRING, EXTENSION
