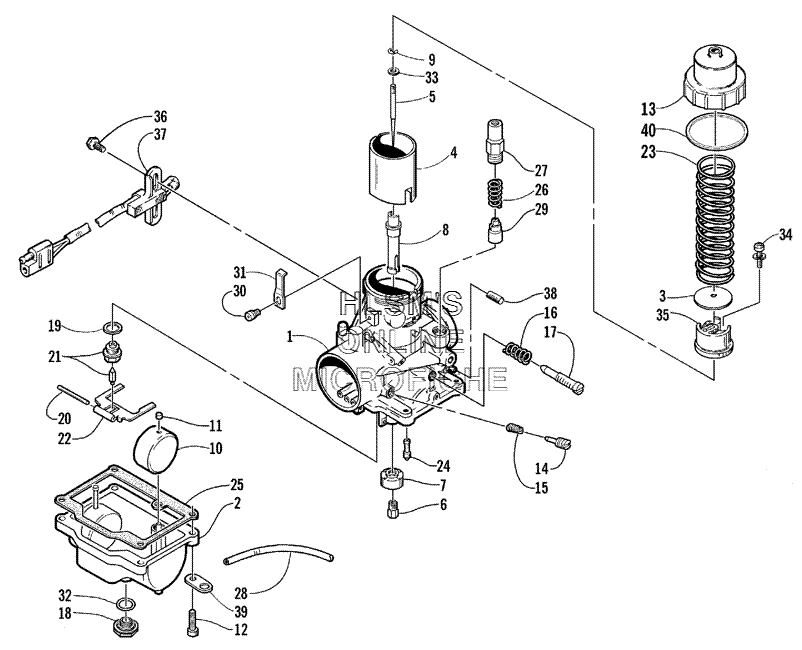

CARBURETOR для Arctic Cat MOUNTAIN CAT 570 - 2002 года выпуска
-
№АртикулНазвание
-
-0770-601 CARBURETOR VM34, 574 COMPLETE ASSY.CARBURETOR VM34, 574 COMPLETE ASSY.
-
26505-632 CHAMBER, FLOATCHAMBER, FLOAT
-
36505-630 PLATEPLATE
-
46505-614 PISTON VALVE CA 2.5PISTON VALVE CA 2.5
-
56506-297 JET NEEDLE 6DF7, 1JET NEEDLE 6DF7, 1
-
66505-144 MAIN JET 200MAIN JET 200
-
76505-620 RING, BAFFLERING, BAFFLE
-
86505-595 NEEDLE JET P, 2 (480)NEEDLE JET P, 2 (480)
-
96505-610 E, CLIPE, CLIP
-
106505-009 FLOATFLOAT
-
116505-010 CAPCAP
-
126505-014 SCREW W/SPRING WASHERSCREW W/SPRING WASHER
-
136505-558 TOP, MIXING BODYTOP, MIXING BODY
-
146505-019 SCREW, PILOT AIR 1.5SCREW, PILOT AIR 1.5
-
156505-020 SPRING, PILOT AIR SCREWSPRING, PILOT AIR SCREW
-
166505-021 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
176505-022 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
186505-617 SCREW, DRAINSCREW, DRAIN
-
196505-024 WASHERWASHER
-
206505-153 PIN, FLOAT ARMPIN, FLOAT ARM
-
216505-160 NEEDLE VALVE ASSY. 1.5NEEDLE VALVE ASSY. 1.5
-
226505-027 ARM, FLOATARM, FLOAT
-
236505-562 SPRING, PISTON VALVESPRING, PISTON VALVE
-
246505-047 PILOT JET 40PILOT JET 40
-
256505-030 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
266505-033 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
276505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
286505-629 HOSEHOSE
-
296505-035 STARTER PLUNGERSTARTER PLUNGER
-
306505-036 SCREW W/SPRING WASHERSCREW W/SPRING WASHER
-
316505-186 PLATEPLATE
-
326505-622 O-RINGO-RING
-
336505-437 WASHER, E, CLIPWASHER, E, CLIP
-
346505-559 SCREW W/WASHERSCREW W/WASHER
-
350770-037 BLOCK, MAGNETBLOCK, MAGNET
-
360623-137 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
370630-076 SWITCH, MAGNETIC, CARBURETORSWITCH, MAGNETIC, CARBURETOR
-
386505-569 CAPCAP
-
396505-608 PLATE, HOSEPLATE, HOSE
-
406505-607 O-RINGO-RING
