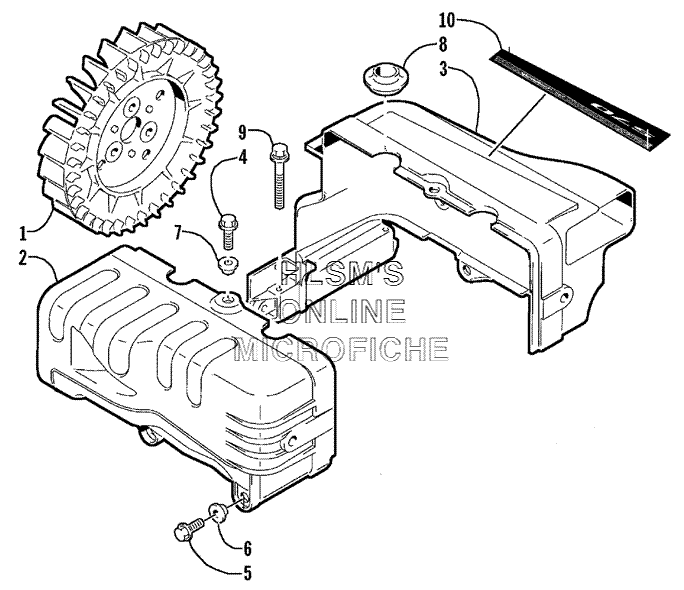

COOLING FAN AND CYLINDER COWLING ASSY. для Arctic Cat MOUNTAIN CAT 570 - 2002 года выпуска
-
№АртикулНазвание
-
13006-016 FAN, COOLINGFAN, COOLING
-
23006-017 COWLING (FRONT)COWLING (FRONT)
-
33006-018 COWLING (REAR)COWLING (REAR)
-
43006-086 BOLTBOLT
-
53006-087 BOLTBOLT
-
63006-088 SPACERSPACER
-
73006-089 SPACERSPACER
-
83005-996 GROMMETGROMMET
-
90693-914 BOLTBOLT
-
104611-448 DECAL, "570"DECAL, "570"
