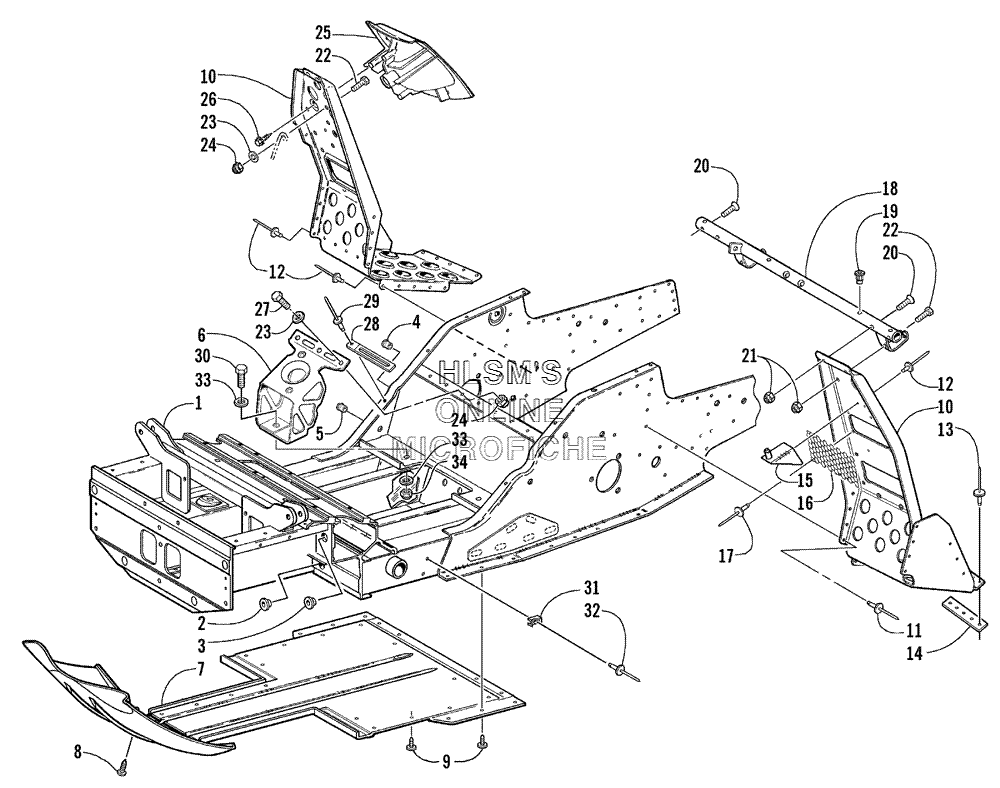

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat MOUNTAIN CAT 570 - 2002 года выпуска
-
№АртикулНазвание
-
10707-643 CHASSIS ASSY. (INC. 2, 5)CHASSIS ASSY. (INC. 2, 5)
-
20607-420 INSERT, A, ARM MOUNTINSERT, A, ARM MOUNT
-
30607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
40623-581 INSERTINSERT
-
50623-582 INSERTINSERT
-
60708-398 BRACKET, ENGINE MOUNTINGBRACKET, ENGINE MOUNTING
-
71606-719 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
80623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
102606-444 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
102606-445 FOOTREST (LEFT)FOOTREST (LEFT)
-
110623-341 RIVETRIVET
-
120623-166 RIVETRIVET
-
130623-282 RIVETRIVET
-
140616-701 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
150705-173 BRACKET, MOUNTING, GUARDBRACKET, MOUNTING, GUARD
-
161606-912 SCREEN, GUARDSCREEN, GUARD
-
178060-704 RIVETRIVET
-
180705-426 SUPPORT, STEERING (INC. 19)SUPPORT, STEERING (INC. 19)
-
190623-779 INSERTINSERT
-
208019-614 SCREW, MACHINESCREW, MACHINE
-
218041-366 NUT, LOCKNUT, LOCK
-
228002-041 SCREW, CAPSCREW, CAP
-
238050-212 WASHERWASHER
-
248040-366 NUT, LOCKNUT, LOCK
-
251606-062 CUP, RECOIL ROPECUP, RECOIL ROPE
-
260623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
278002-040 SCREW, CAPSCREW, CAP
-
283002-964 CLAMP, WIRECLAMP, WIRE
-
298060-506 RIVETRIVET
-
308002-132 SCREW, CAPSCREW, CAP
-
310623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
328060-428 RIVETRIVET
-
338050-252 WASHERWASHER
-
348040-426 NUT, LOCKNUT, LOCK
