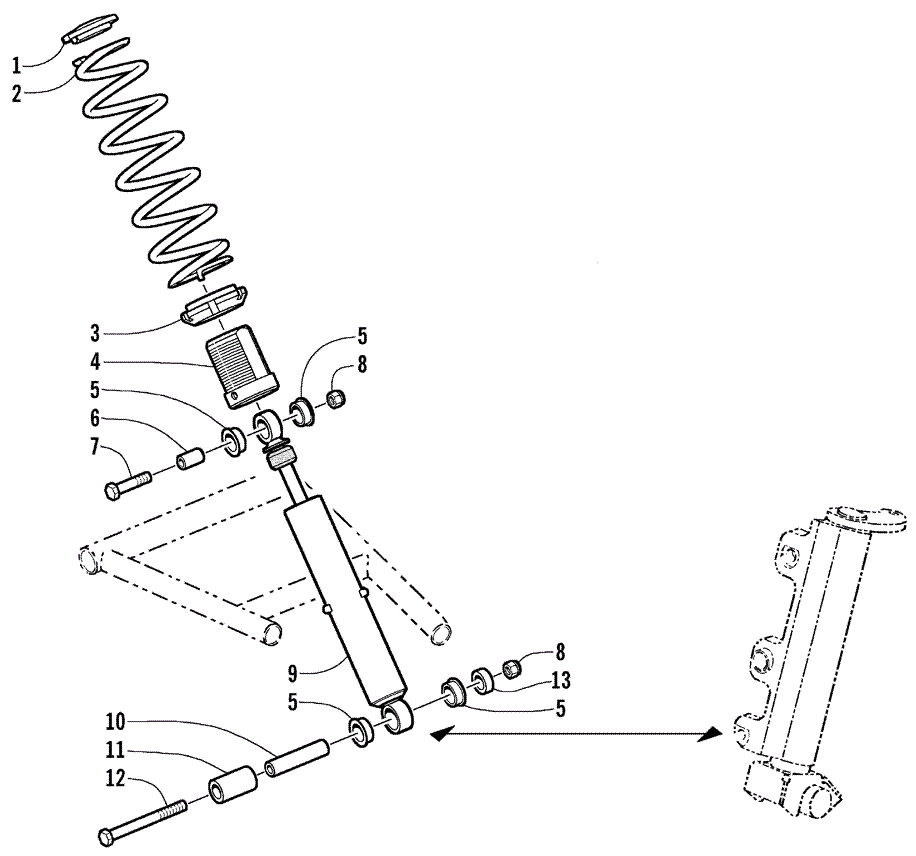

FRONT SUSPENSION SHOCK ABSORBER ASSY. для Arctic Cat MOUNTAIN CAT 570 - 2002 года выпуска
-
№АртикулНазвание
-
11603-889 RETAINER, SPRINGRETAINER, SPRING
-
21603-891 SPRING SUSPENSION (FRONT) (BLACK)SPRING SUSPENSION (FRONT) (BLACK)
-
30603-259 NUT, RETAINER, SPRINGNUT, RETAINER, SPRING
-
40603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
50604-310 BUSHING, SHOCK ABSORBERBUSHING, SHOCK ABSORBER
-
60604-309 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
78002-226 SCREW, CAPSCREW, CAP
-
88040-486 NUT, LOCKNUT, LOCK
-
91603-614 SHOCK SUSPENSION (FRONT) (INC. 5, 6)SHOCK SUSPENSION (FRONT) (INC. 5, 6)
-
101604-184 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
110603-854 SPACER, SHOCK ABSORBER (FRONT)SPACER, SHOCK ABSORBER (FRONT)
-
128002-234 SCREW, CAPSCREW, CAP
-
130603-855 SPACER, SHOCK ABSORBER (REAR)SPACER, SHOCK ABSORBER (REAR)
