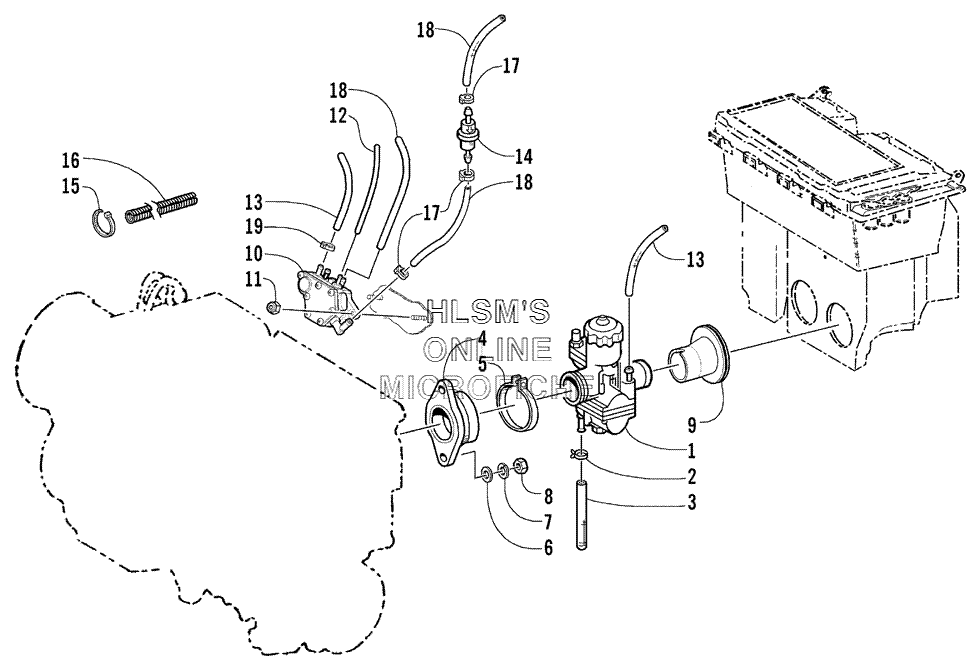

CARBURETOR AND FUEL PUMP ASSY. для Arctic Cat MOUNTAIN CAT 570 - 2002 года выпуска
-
№АртикулНазвание
-
10770-601 CARBURETOR ASSY., VM34, 574CARBURETOR ASSY., VM34, 574
-
20623-652 CLAMP, HOSECLAMP, HOSE
-
30610-442 HOSE, DRAINHOSE, DRAIN
-
40115-544 FLANGE, CARBURETOR (INC. 5)FLANGE, CARBURETOR (INC. 5)
-
50109-709 CLAMP, CARBURETOR FLANGECLAMP, CARBURETOR FLANGE
-
63003-079 WASHERWASHER
-
73003-078 WASHER, LOCKWASHER, LOCK
-
83003-623 NUTNUT
-
91670-310 BOOT, AIR SILENCER (RIGHT)BOOT, AIR SILENCER (RIGHT)
-
91670-263 BOOT, AIR SILENCER (LEFT)BOOT, AIR SILENCER (LEFT)
-
101670-262 PUMP, FUELPUMP, FUEL
-
110623-877 NUT W/WASHERNUT W/WASHER
-
120610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
130610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
130610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
141670-166 FILTER, FUELFILTER, FUEL
-
150123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
160716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
170124-045 CLAMP, HOSECLAMP, HOSE
-
180610-015 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
180610-016 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
190623-502 CLAMP, HOSECLAMP, HOSE
