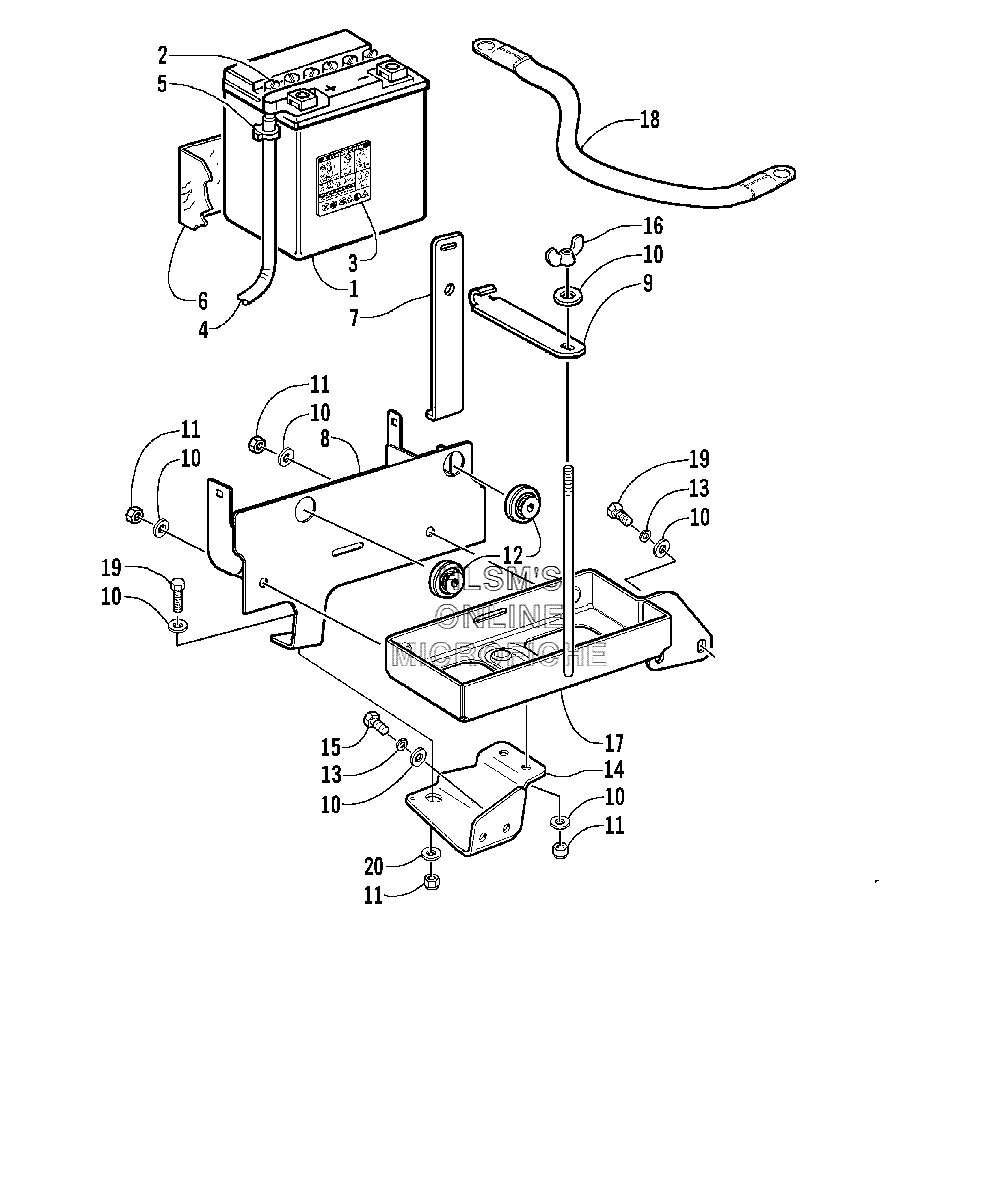

BATTERY ASSEMBLY для Arctic Cat 4-STROKE TOURING - 2003 года выпуска
-
№АртикулНазвание
-
10745-059 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
20645-246 CAP, BATTERYCAP, BATTERY
-
30645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
40645-179 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
60645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
70645-311 STRAP, BATTERY HOLD, DOWN (SIDE)STRAP, BATTERY HOLD, DOWN (SIDE)
-
80745-177 FUSE BOX/ECU HOLDERFUSE BOX/ECU HOLDER
-
90645-243 STRAP, BATTERY HOLD, DOWN (TOP)STRAP, BATTERY HOLD, DOWN (TOP)
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
120645-359 MOUNT, ECUMOUNT, ECU
-
138051-217 WASHER, LOCKWASHER, LOCK
-
140712-834 BRACKET, MOUNTING, BATTERY TRAYBRACKET, MOUNTING, BATTERY TRAY
-
158002-041 SCREW, CAPSCREW, CAP
-
160623-325 NUT, WINGNUT, WING
-
170745-166 TRAY, BATTERYTRAY, BATTERY
-
180645-412 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
198002-040 SCREW, CAPSCREW, CAP
-
200623-184 WASHERWASHER
