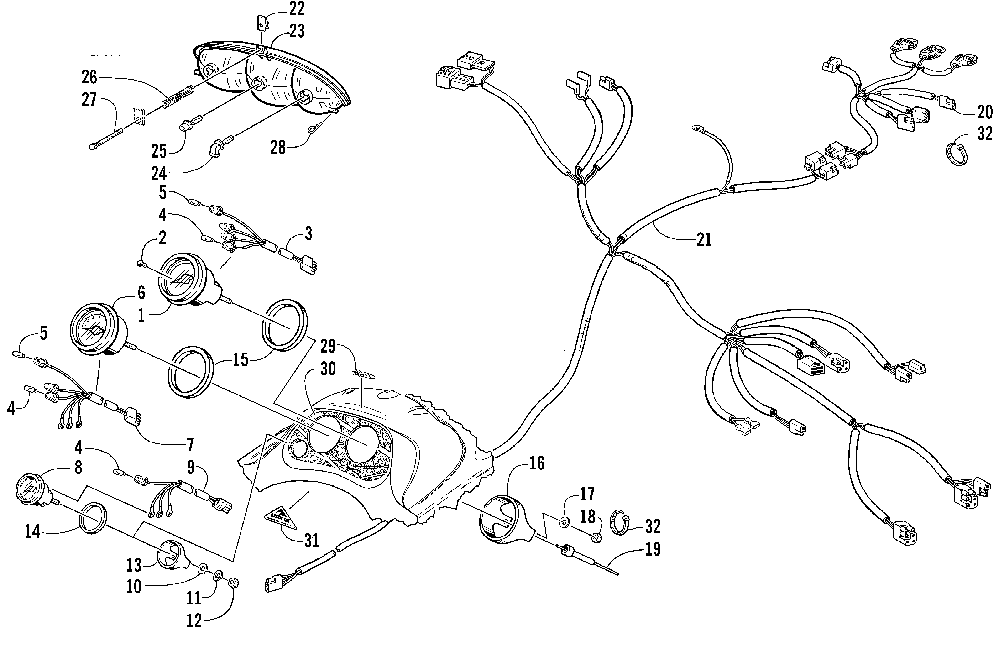

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat 4-STROKE TOURING - 2003 года выпуска
-
№АртикулНазвание
-
10620-265 SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5)SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5)
-
10620-271 SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5) (INTERNATIONAL)SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5) (INTERNATIONAL)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-266 HARNESS, BULB, SPEEDOMETER (INC. THREE NO. 4 AND ONE NO. 5)HARNESS, BULB, SPEEDOMETER (INC. THREE NO. 4 AND ONE NO. 5)
-
40620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-259 TACHOMETER (INC. TWO NO. 4, ONE NO. 5, AND 7)TACHOMETER (INC. TWO NO. 4, ONE NO. 5, AND 7)
-
70620-262 HARNESS, TACHOMETER (INC. TWO NO. 4 AND ONE NO. 5)HARNESS, TACHOMETER (INC. TWO NO. 4 AND ONE NO. 5)
-
80620-270 GAUGE, FUEL (INC. 9, TWO NO. 10, 12, AND ONE NO. 4)GAUGE, FUEL (INC. 9, TWO NO. 10, 12, AND ONE NO. 4)
-
90620-275 HARNESS, FUEL GAUGE (INC. ONE NO. 4)HARNESS, FUEL GAUGE (INC. ONE NO. 4)
-
108050-122 WASHERWASHER
-
118051-122 WASHER, LOCKWASHER, LOCK
-
120623-839 NUTNUT
-
130620-138 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
140620-139 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
150620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
160620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
178050-212 WASHERWASHER
-
180623-038 NUT W/WASHERNUT W/WASHER
-
190620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
200686-850 HARNESS, MAINHARNESS, MAIN
-
210686-870 HARNESS, HOODHARNESS, HOOD
-
220623-757 NUT, UNUT, U
-
230609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
240609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
250609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
260623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
270623-467 SCREW, THUMBSCREW, THUMB
-
280623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
293611-581 DECAL, "ESR", DOMEDDECAL, "ESR", DOMED
-
304611-791 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
313611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
320123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
