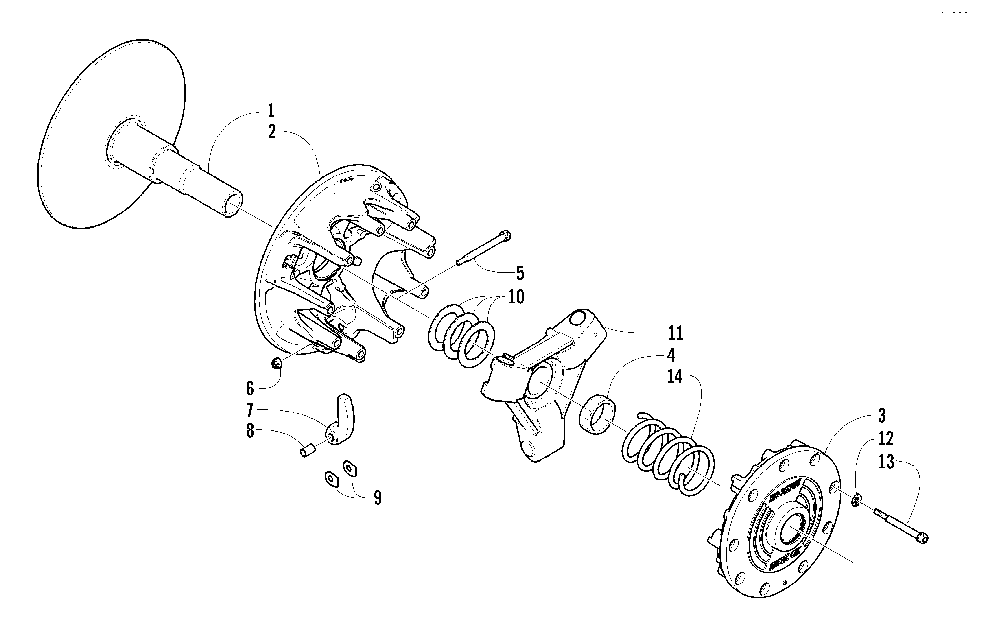

DRIVE CLUTCH для Arctic Cat 4-STROKE TOURING - 2003 года выпуска
-
№АртикулНазвание
-
-0725-377 CLUTCH DRIVE ASSYCLUTCH DRIVE ASSY
-
-1639-030 CAM ARM KIT (INC. 5, 6, 8, AND 9)CAM ARM KIT (INC. 5, 6, 8, AND 9)
-
-0746-120 UNCALIBRATED DRIVE CLUTCHUNCALIBRATED DRIVE CLUTCH
-
10646-365 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-080 SHEAVE, MOVABLESHEAVE, MOVABLE
-
30746-086 COVERCOVER
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-646 ARM, CAM (INC. 8)ARM, CAM (INC. 8)
-
70746-645 ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)
-
70746-647 ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)
-
80646-160 BEARING, CAM ARMBEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-266 WASHER, SPACER (.030)WASHER, SPACER (.030)
-
100646-196 WASHER, SPACERWASHER, SPACER
-
110746-115 SPIDER ASSYSPIDER ASSY
-
128051-212 WASHER, LOCKWASHER, LOCK
-
130623-596 SCREW, MACHINESCREW, MACHINE
-
140646-367 SPRING, DRIVE CLUTCH (BLACK)SPRING, DRIVE CLUTCH (BLACK)
