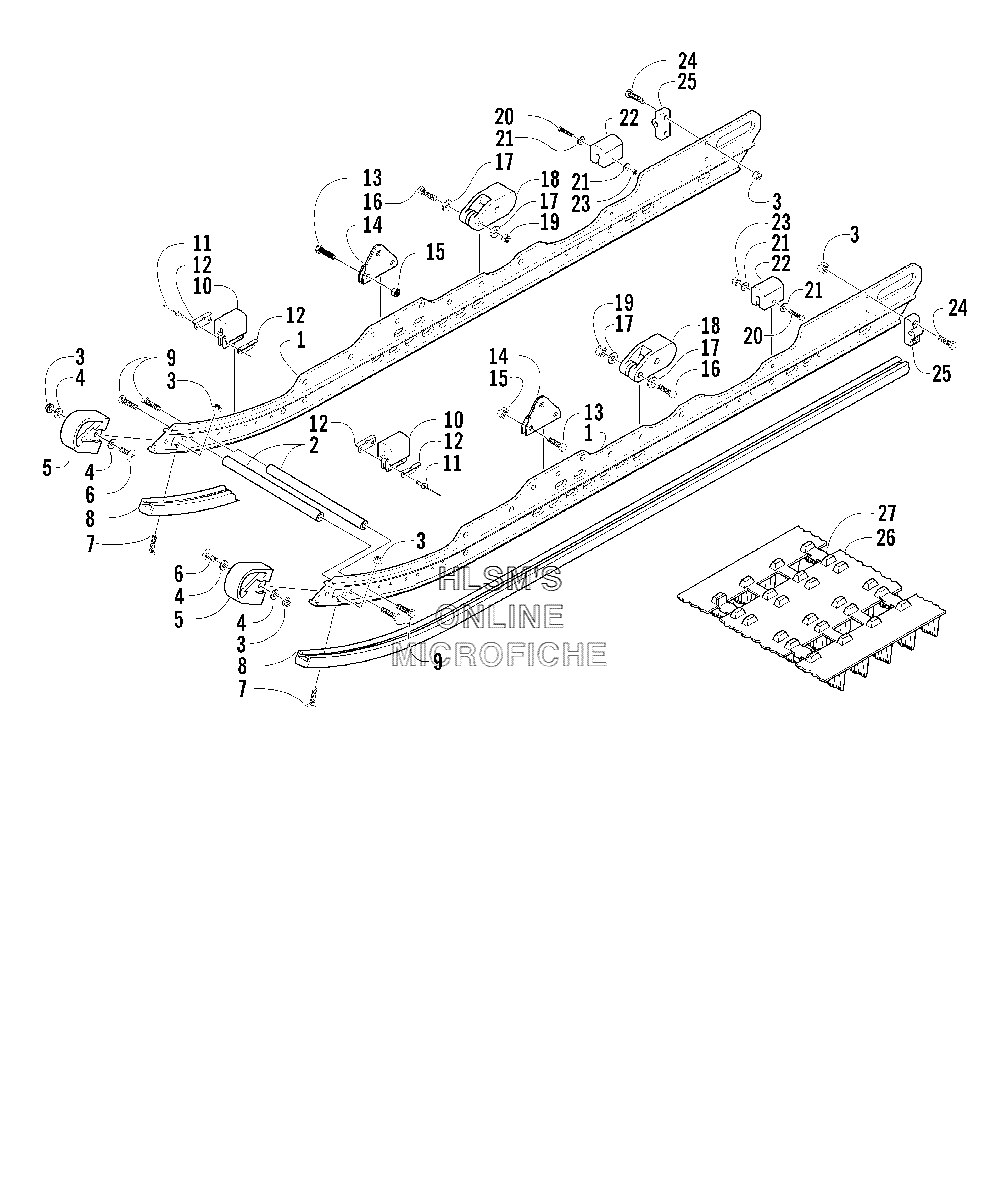

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat 4-STROKE TOURING - 2003 года выпуска
-
№АртикулНазвание
-
-7996-767 COMPLETE SKID FRAME ASSYCOMPLETE SKID FRAME ASSY
-
11604-990 RAIL, FORMEDRAIL, FORMED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
38040-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
51604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-044 SCREW, CAPSCREW, CAP
-
70123-869 SCREW, MACHINESCREW, MACHINE
-
80604-640 WEARSTRIP, SLIDE RAIL (BLACK)WEARSTRIP, SLIDE RAIL (BLACK)
-
98002-134 SCREW, CAPSCREW, CAP
-
100604-918 PAD, SHOCKPAD, SHOCK
-
118060-633 RIVET, SOLIDRIVET, SOLID
-
120604-967 BRACKET, RETAININGBRACKET, RETAINING
-
138002-131 SCREW, CAPSCREW, CAP
-
140704-395 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
158040-426 NUT, LOCKNUT, LOCK
-
168002-227 SCREW, CAPSCREW, CAP
-
178050-277 WASHERWASHER
-
181604-413 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
198041-486 NUT, LOCKNUT, LOCK
-
200623-082 SCREW, MACHINESCREW, MACHINE
-
218050-157 WASHERWASHER
-
221604-429 PAD, SHOCKPAD, SHOCK
-
238040-276 NUT, LOCKNUT, LOCK
-
248002-042 SCREW, CAPSCREW, CAP
-
250704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
261602-399 TRACK ASSY (INC. 27)TRACK ASSY (INC. 27)
-
270602-488 CLIP, GUIDECLIP, GUIDE
