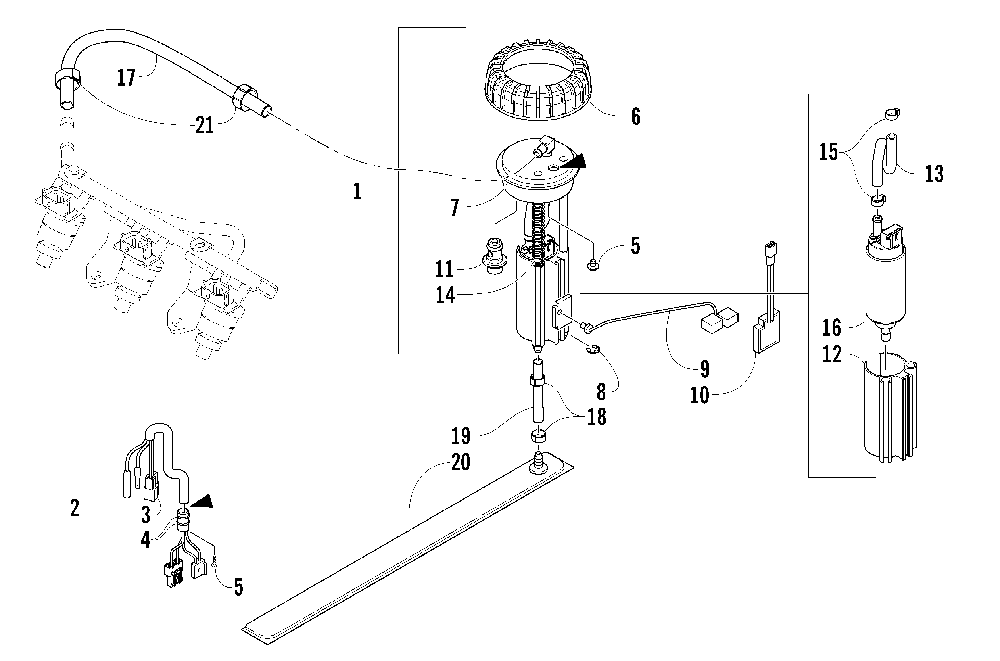

FUEL PUMP ASSEMBLY для Arctic Cat 4-STROKE TOURING - 2003 года выпуска
-
№АртикулНазвание
-
11670-506 PUMP, FUEL, ASSY (INC. 2, 16)PUMP, FUEL, ASSY (INC. 2, 16)
-
21670-526 HARNESS, FUEL PUMP (INC. 3, 4)HARNESS, FUEL PUMP (INC. 3, 4)
-
30670-380 CONNECTOR, HARNESSCONNECTOR, HARNESS
-
40670-381 O-RINGO-RING
-
51670-412 SCREW, MACHINE, HARNESSSCREW, MACHINE, HARNESS
-
61670-119 NUT, RETAINING, FUEL PUMPNUT, RETAINING, FUEL PUMP
-
71670-118 SEAL, FUEL PUMP HOUSINGSEAL, FUEL PUMP HOUSING
-
81670-244 RING, RETAININGRING, RETAINING
-
90670-460 ARM, FLOATARM, FLOAT
-
101670-408 ELEMENT, FUEL SENSORELEMENT, FUEL SENSOR
-
111670-414 REGULATOR, FUELREGULATOR, FUEL
-
121670-529 HOUSING, FUEL PUMPHOUSING, FUEL PUMP
-
131670-521 HOSE, FUEL PUMP (TOP)HOSE, FUEL PUMP (TOP)
-
141670-411 SPRING, FUEL PUMP ASSYSPRING, FUEL PUMP ASSY
-
151670-520 CLAMP, HOSECLAMP, HOSE
-
161670-531 PUMP, FUELPUMP, FUEL
-
170610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
180610-415 CLAMP, HOSECLAMP, HOSE
-
196101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
196101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
201670-525 PICKUP, FUELPICKUP, FUEL
-
210610-419 CLAMP, HOSECLAMP, HOSE
