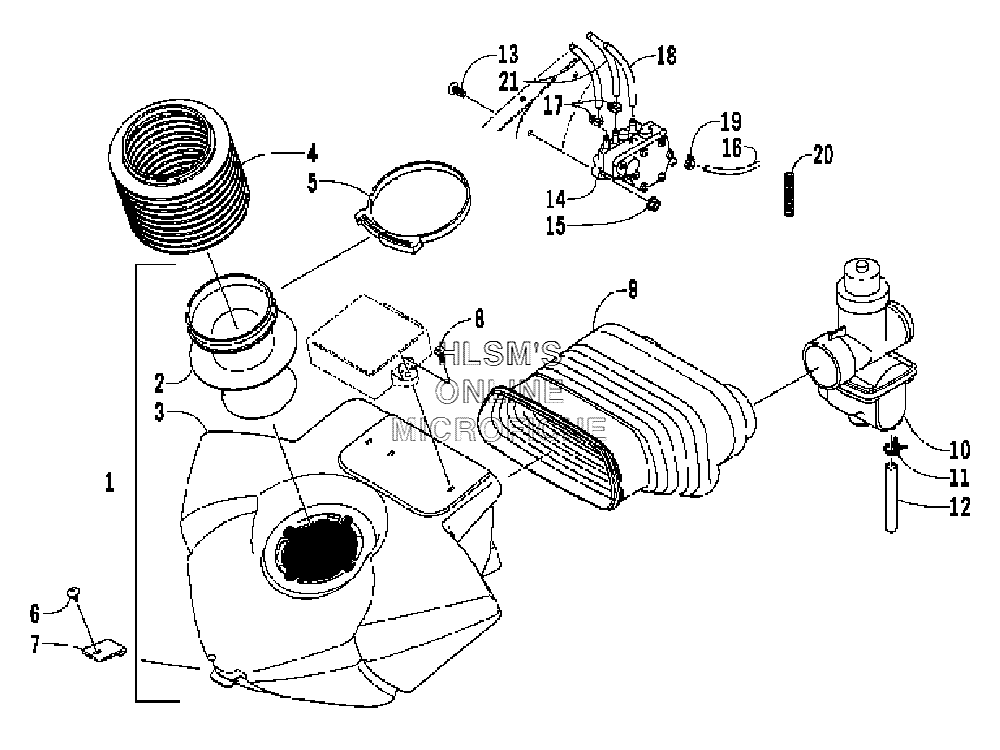

AIR SILENCER ASSY. для Arctic Cat Sabercat 500 LX (Green) - 2004 года выпуска
-
№АртикулНазвание
-
10770-611 SILENCER, AIR, ASSY. (INC. 2, 3)SILENCER, AIR, ASSY. (INC. 2, 3)
-
21670-473 INTAKE, AIRINTAKE, AIR
-
31670-616 SILENCER, AIRSILENCER, AIR
-
41670-514 CONNECTOR, AIR, INTAKECONNECTOR, AIR, INTAKE
-
51623-132 CLAMP, AIR, INTAKE CONNECTORCLAMP, AIR, INTAKE CONNECTOR
-
61623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
73606-146 HOLD, DOWN, AIR SILENCERHOLD, DOWN, AIR SILENCER
-
81623-204 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
91670-581 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
100770-674 CARBURETOR, VM34, 598 (RIGHT)CARBURETOR, VM34, 598 (RIGHT)
-
100770-675 CARBURETOR, VM34, 610 (LEFT)CARBURETOR, VM34, 610 (LEFT)
-
110623-652 CLAMP, HOSECLAMP, HOSE
-
120610-442 HOSE, DRAINHOSE, DRAIN
-
138017-581 SCREW, MACHINESCREW, MACHINE
-
141670-537 PUMP, FUELPUMP, FUEL
-
158048-366 NUT, LOCKNUT, LOCK
-
160610-015 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
160610-016 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
170623-063 CLAMP, HOSECLAMP, HOSE
-
180610-007 HOSE, IMPULSEHOSE, IMPULSE
-
190124-045 CLAMP, HOSECLAMP, HOSE
-
200619-776 CONDUIT, FLEXIBLE (5 FT)CONDUIT, FLEXIBLE (5 FT)
-
216101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
216101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
