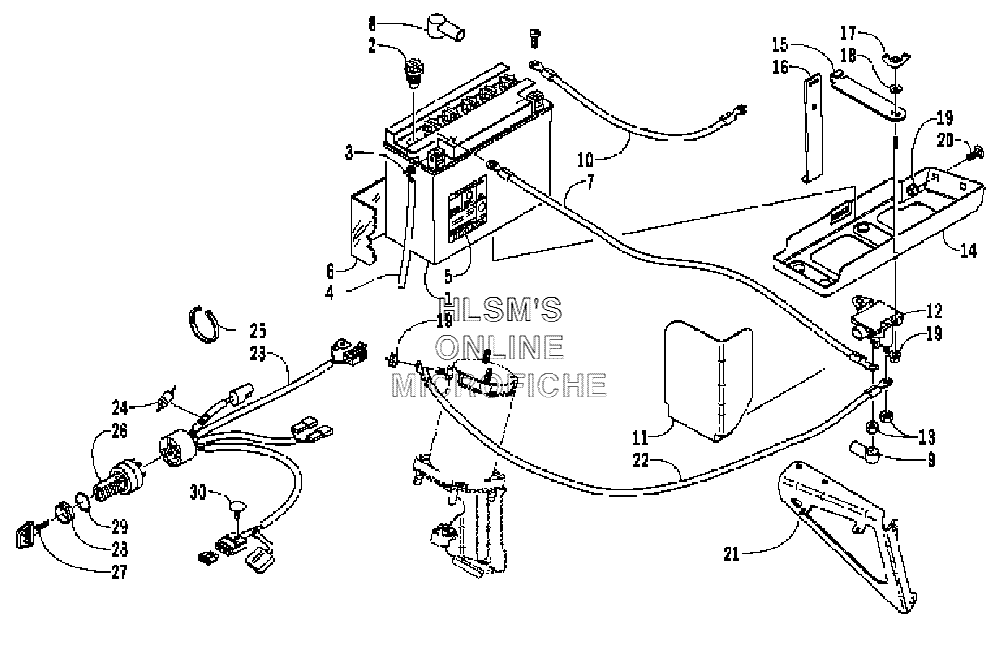

BATTERY- SOLENOID- AND CABLES для Arctic Cat Sabercat 500 LX (Green) - 2004 года выпуска
-
№АртикулНазвание
-
10745-047 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
10745-059 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
20645-246 CAP, BATTERYCAP, BATTERY
-
30645-152 CLAMP, HOSECLAMP, HOSE
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
60645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
70645-427 CABLE, BATTERY/SOLENOID (INC. 8, 9)CABLE, BATTERY/SOLENOID (INC. 8, 9)
-
80645-019 BOOT, TERMINAL, BATTERYBOOT, TERMINAL, BATTERY
-
90645-327 BOOT, TERMINAL, SOLENOIDBOOT, TERMINAL, SOLENOID
-
100645-136 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
110745-220 SHIELD, HEATSHIELD, HEAT
-
120645-414 SOLENOIDSOLENOID
-
130623-038 NUT W/WASHERNUT W/WASHER
-
140745-205 TRAY, BATTERYTRAY, BATTERY
-
150645-243 STRAP, BATTERY, TOPSTRAP, BATTERY, TOP
-
160645-311 STRAP, BATTERY, SIDESTRAP, BATTERY, SIDE
-
170623-325 NUT, WINGNUT, WING
-
188050-217 WASHERWASHER
-
198048-366 NUT, LOCKNUT, LOCK
-
208011-039 BOLT, CARRIAGEBOLT, CARRIAGE
-
210745-204 BRACKET, MOUNTING, BATTERY TRAYBRACKET, MOUNTING, BATTERY TRAY
-
220645-428 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
