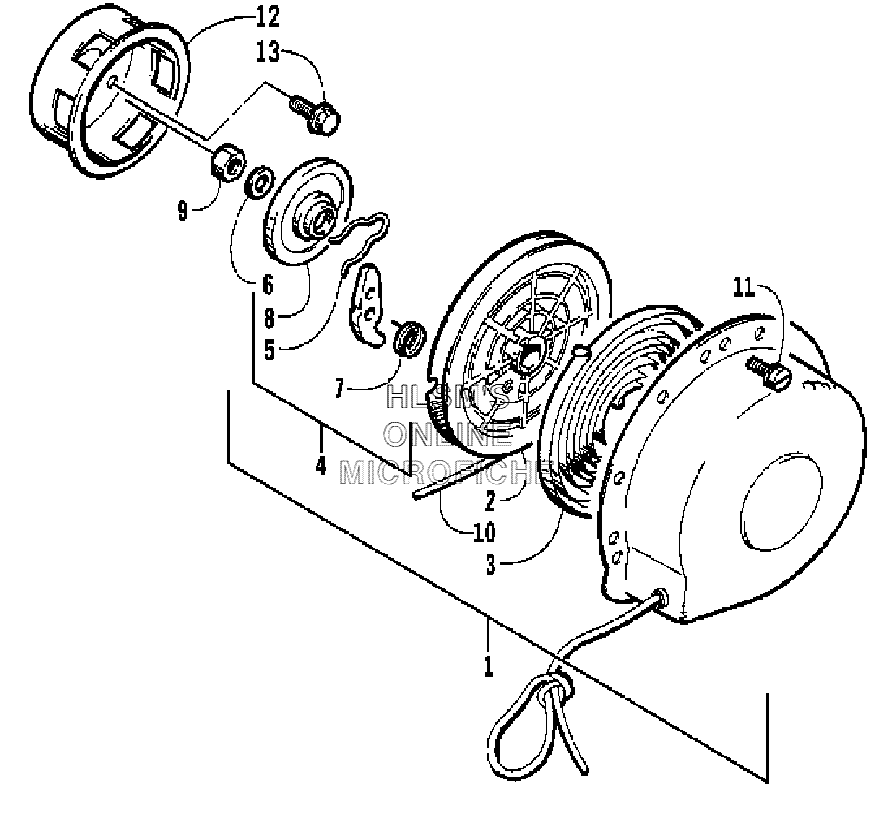

RECOIL STARTER для Arctic Cat Sabercat 500 LX (Green) - 2004 года выпуска
-
№АртикулНазвание
-
13006-438 STARTER ASSY. (INC. 2, 10)STARTER ASSY. (INC. 2, 10)
-
23003-179 ROLLER, STARTERROLLER, STARTER
-
33002-921 SPRINGSPRING
-
43006-457 RATCHET SET (INC. 5, 7)RATCHET SET (INC. 5, 7)
-
83006-475 PLATE, FRICTIONPLATE, FRICTION
-
93006-456 NUTNUT
-
103003-327 ROPE, STARTERROPE, STARTER
-
113004-383 SCREW, CAPSCREW, CAP
-
123003-929 PULLEY, STARTERPULLEY, STARTER
-
133006-541 SCREW, CAPSCREW, CAP
