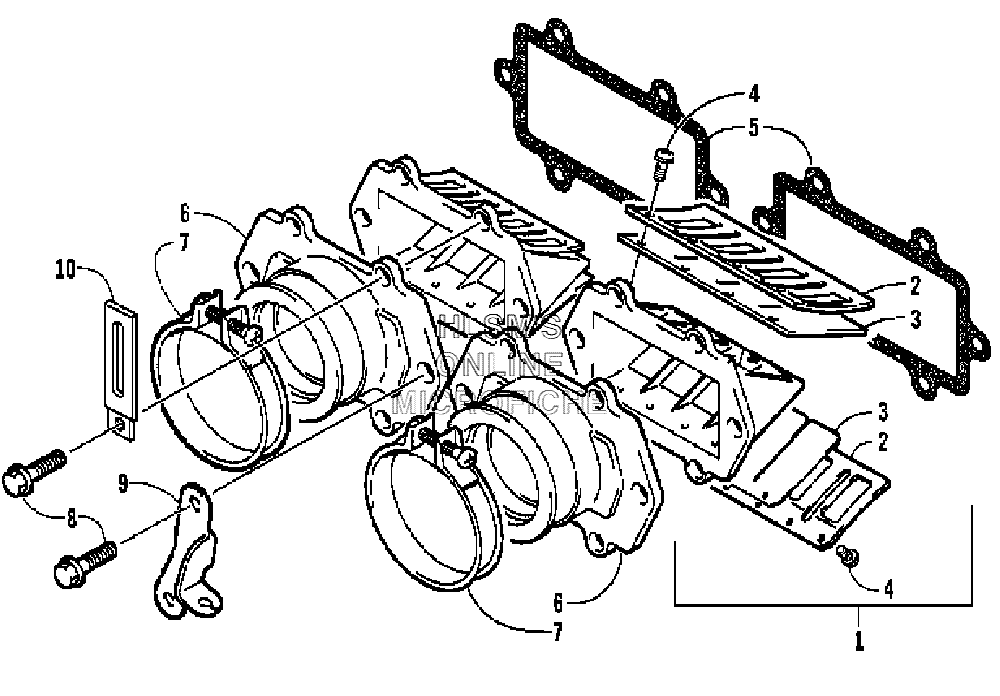

REED VALVE ASSY. для Arctic Cat Sabercat 500 LX (Green) - 2004 года выпуска
-
№АртикулНазвание
-
13005-876 VALVE, REED, ASSY. (INC. 2, 4)VALVE, REED, ASSY. (INC. 2, 4)
-
23005-877 STOPPERSTOPPER
-
33005-878 VALVE, REEDVALVE, REED
-
43004-506 SCREWSCREW
-
53005-879 GASKET, REED VALVEGASKET, REED VALVE
-
63006-747 PIPE, INTAKEPIPE, INTAKE
-
73004-212 CLAMPCLAMP
-
83004-341 BOLTBOLT
-
93006-485 BRACKET, OIL PUMP CABLEBRACKET, OIL PUMP CABLE
-
103002-964 CLAMP, WIRECLAMP, WIRE
