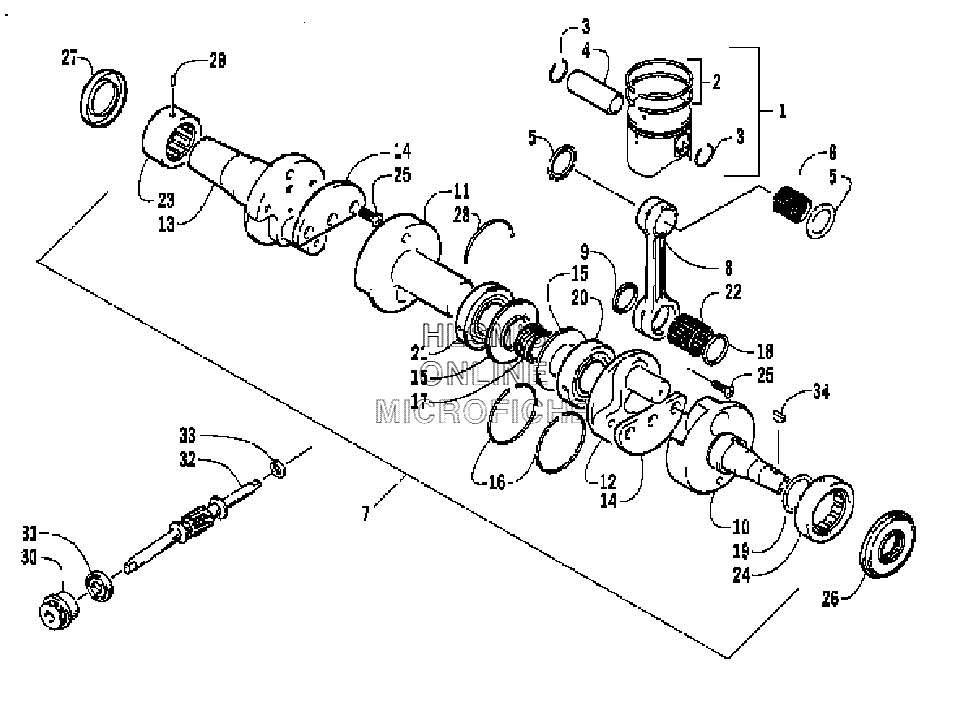

PISTON AND CRANKSHAFT для Arctic Cat Sabercat 500 LX (Green) - 2004 года выпуска
-
№АртикулНазвание
-
13006-746 PISTON SET (INC. 2, 3)PISTON SET (INC. 2, 3)
-
23005-828 RING SET, PISTONRING SET, PISTON
-
33005-304 CIRCLIP, PISTONCIRCLIP, PISTON
-
43005-816 PIN, PISTONPIN, PISTON
-
53008-500 WASHERWASHER
-
63008-503 BEARINGBEARING
-
73006-428 CRANKSHAFT ASSY. (INC. 8, 25)CRANKSHAFT ASSY. (INC. 8, 25)
-
83005-492 CONNECTING RODCONNECTING ROD
-
93005-494 WASHER, CRANK PIN BEARINGWASHER, CRANK PIN BEARING
-
103006-346 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
113006-347 CRANKSHAFT (MIDDLE)CRANKSHAFT (MIDDLE)
-
123006-348 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
133006-349 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
143005-500 BALANCER, CRANKSHAFTBALANCER, CRANKSHAFT
-
153005-597 RACE CRANK SEAL (MIDDLE)RACE CRANK SEAL (MIDDLE)
-
163005-508 RING CRANK SEAL (MIDDLE)RING CRANK SEAL (MIDDLE)
-
173006-353 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
183005-502 WASHERWASHER
-
193005-603 SHIMSHIM
-
203005-503 BEARINGBEARING
-
213005-504 BEARINGBEARING
-
223005-505 BEARINGBEARING
-
233006-540 BEARINGBEARING
-
243005-507 BEARINGBEARING
-
253004-372 SCREWSCREW
-
263008-525 SEAL, OILSEAL, OIL
-
273003-759 SEAL, OILSEAL, OIL
-
283003-359 C, RINGC, RING
-
293003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
303005-909 SEAL, MECHANICAL, WATER PUMPSEAL, MECHANICAL, WATER PUMP
-
313004-760 SEAL, WATER/OIL PUMPSEAL, WATER/OIL PUMP
-
323006-354 GEAR, DRIVEN, OIL PUMPGEAR, DRIVEN, OIL PUMP
-
333005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
343010-070 KEYKEY
