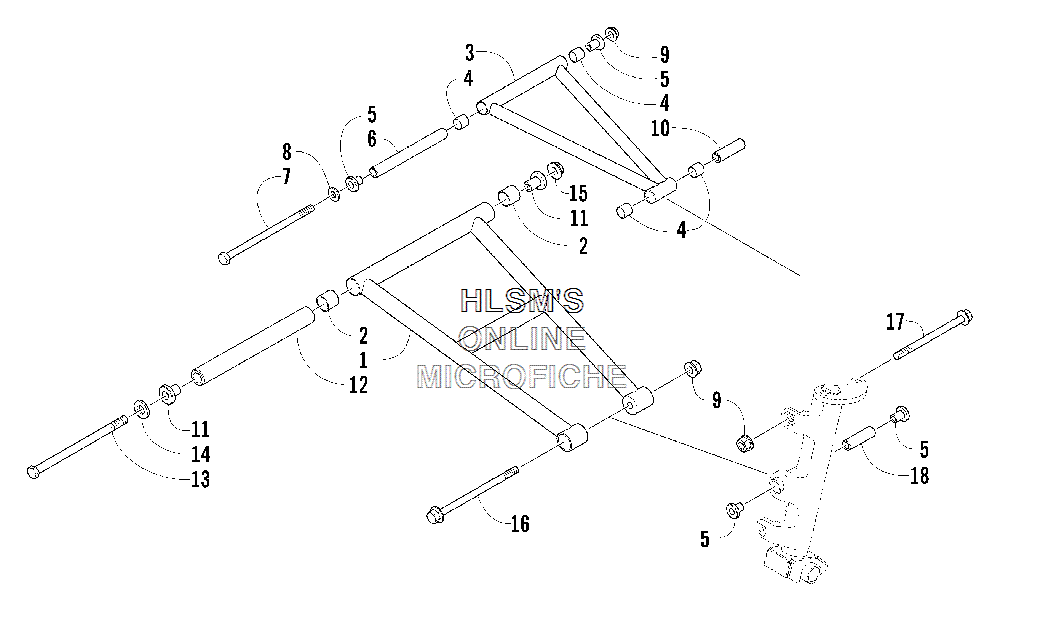

A-ARM ASSY. для Arctic Cat King Cat 900 EFI (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11703-456 ARM, LOWER (INC. 2)ARM, LOWER (INC. 2)
-
22603-196 BUSHING, PLASTIC-.927 OD X .76BUSHING, PLASTIC-.927 OD X .76
-
31703-067 ARM, UPPER (INC. 4)ARM, UPPER (INC. 4)
-
41603-915 BUSHING, PLASTIC-.625 IDBUSHING, PLASTIC-.625 ID
-
51603-244 AXLE, POWDER METALAXLE, POWDER METAL
-
60603-692 TUBE, AXLE-UPPER ARM-PIVOTTUBE, AXLE-UPPER ARM-PIVOT
-
70623-509 SCREW, CAPSCREW, CAP
-
80623-664 WASHER, FLATWASHER, FLAT
-
98048-486 NUT, LOCKNUT, LOCK
-
100603-864 TUBE, AXLETUBE, AXLE
-
111603-397 AXLE, NON-SERRATED-LOWER ARM PIVOTAXLE, NON-SERRATED-LOWER ARM PIVOT
-
120603-693 TUBE, AXLE-LOWER PIVOTTUBE, AXLE-LOWER PIVOT
-
130623-508 SCREW, CAPSCREW, CAP
-
140623-663 WASHER, FLATWASHER, FLAT
-
158048-546 NUT, LOCKNUT, LOCK
-
168026-236 SCREW,CAP-HFH 3/8-16 X 5.00 GRSCREW,CAP-HFH 3/8-16 X 5.00 GR
-
178026-232 SCREW,CAP-HFH 3/8-16 X 3.25 GRSCREW,CAP-HFH 3/8-16 X 3.25 GR
-
180603-639 TUBE, AXLE-LOWER ARMTUBE, AXLE-LOWER ARM
