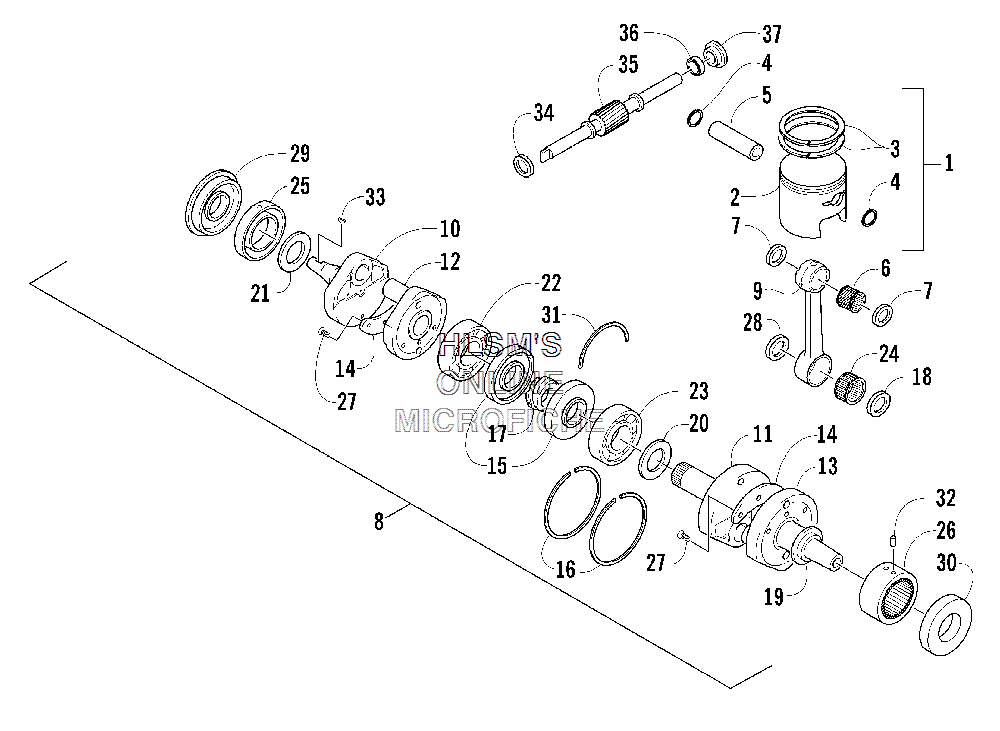

PISTON AND CRANKSHAFT для Arctic Cat King Cat 900 EFI (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
13006-393 PISTON ASSY. (INC. 2, 4)PISTON ASSY. (INC. 2, 4)
-
33006-394 RING, PISTON, SETRING, PISTON, SET
-
43008-585 RING, SNAPRING, SNAP
-
53006-395 PIN, PISTONPIN, PISTON
-
63008-583 BEARING, PISTON PINBEARING, PISTON PIN
-
73008-582 WASHER, BEARING, PISTON PINWASHER, BEARING, PISTON PIN
-
83006-927 CRANKSHAFT ASSY. (INC. 9, 28)CRANKSHAFT ASSY. (INC. 9, 28)
-
93005-867 ROD, CONNECTINGROD, CONNECTING
-
103006-926 CRANKSHAFT, RIGHTCRANKSHAFT, RIGHT
-
113006-917 CRANKSHAFT, CENTERCRANKSHAFT, CENTER
-
123006-919 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
133006-920 CRANKSHAFT, LEFTCRANKSHAFT, LEFT
-
143005-872 BALANCERBALANCER
-
153005-873 RACE, SEAL, CENTERRACE, SEAL, CENTER
-
163005-874 RINGRING
-
173005-882 GEAR, DRIVE, OIL PUMPGEAR, DRIVE, OIL PUMP
-
183004-147 WASHERWASHER
-
193005-848 WASHERWASHER
-
203008-495 WASHER, 40MMWASHER, 40MM
-
213005-849 WASHERWASHER
-
223005-850 BEARINGBEARING
-
233005-851 BEARINGBEARING
-
243008-584 BEARINGBEARING
-
253005-852 BEARINGBEARING
-
263005-853 BEARINGBEARING
-
273004-372 SCREW, 6X20 C/SSCREW, 6X20 C/S
-
283008-603 WASHERWASHER
-
293005-855 SEAL, OIL, RIGHTSEAL, OIL, RIGHT
-
303005-856 SEAL, OIL, LEFTSEAL, OIL, LEFT
-
313005-857 C, RINGC, RING
-
323003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
333004-540 KEY, WOODRUFF, M4KEY, WOODRUFF, M4
-
343423-300 WASHERWASHER
-
353005-883 GEAR, DRIVEN, OIL PUMPGEAR, DRIVEN, OIL PUMP
-
363004-760 SEAL, OILSEAL, OIL
-
373005-909 SEAL, MECHANICALSEAL, MECHANICAL
