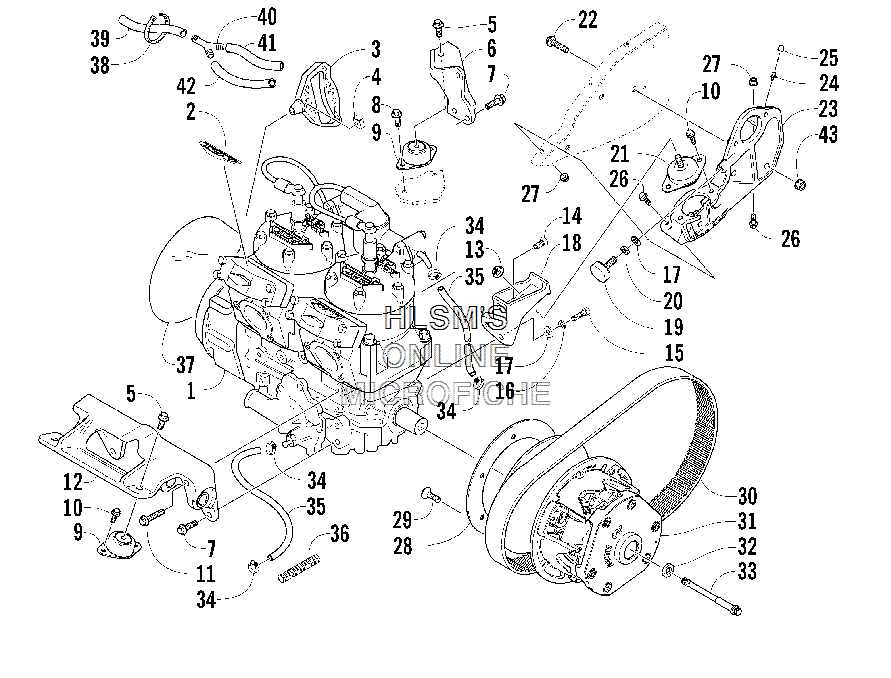

ENGINE AND RELATED PARTS для Arctic Cat King Cat 900 EFI (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10662-454 ENGINE, AB86L5 W) (O EFI COMPONENTSENGINE, AB86L5 W) (O EFI COMPONENTS
-
23611-967 DECAL, "APV"DECAL, "APV"
-
30636-363 HANDLE, RECOILHANDLE, RECOIL
-
40606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
58020-220 SCREW, CAPSCREW, CAP
-
60708-157 BRACKET, MOUNTING, ENGINE, RIGHT, REARBRACKET, MOUNTING, ENGINE, RIGHT, REAR
-
78020-223 SCREW, CAPSCREW, CAP
-
88020-130 SCREW, CAPSCREW, CAP
-
90608-347 MOUNT, ENGINEMOUNT, ENGINE
-
100623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
118020-228 SCREW, CAPSCREW, CAP
-
120708-116 BRACKET, MOUNTING, ENGINE, FRONTBRACKET, MOUNTING, ENGINE, FRONT
-
138047-486 NUT, LOCKNUT, LOCK
-
140623-881 SCREW, MACHINESCREW, MACHINE
-
158005-674 SCREW, CAPSCREW, CAP
-
168051-277 WASHER, LOCKWASHER, LOCK
-
178050-272 WASHER, FLATWASHER, FLAT
-
180708-158 BRACKET, MOUNTING, ENGINE, LEFT, REARBRACKET, MOUNTING, ENGINE, LEFT, REAR
-
190608-355 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
200123-191 NUTNUT
-
210708-145 MOUNT, ENGINE, ASSY.MOUNT, ENGINE, ASSY.
-
228020-224 SCREW, CAPSCREW, CAP
-
230708-400 BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 24, 25)BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 24, 25)
-
240623-899 FITTING, GREASEFITTING, GREASE
-
250623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
268020-041 SCREW, CAPSCREW, CAP
-
278047-366 NUT, LOCKNUT, LOCK
-
280645-410 RING, CLUTCH DAMPERRING, CLUTCH DAMPER
-
291623-128 SCREW, MACHINESCREW, MACHINE
-
300627-020 BELT, DRIVEBELT, DRIVE
-
310725-477 CLUTCH, DRIVECLUTCH, DRIVE
-
320623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
330623-913 BOLT, CLUTCHBOLT, CLUTCH
-
340623-373 CLAMP, HOSECLAMP, HOSE
-
350610-076 HOSE, COOLANT (10 FT)HOSE, COOLANT (10 FT)
-
360619-776 CONDUIT, FLEXIBLE, 5 FTCONDUIT, FLEXIBLE, 5 FT
-
371670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
380123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
390610-535 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
400670-875 Y, FITTINGY, FITTING
-
410610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
420610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
-
438048-486 NUT, LOCKNUT, LOCK
Все узлы модели:
- A-ARM ASSY.
- AIR SILENCER ASSY.
- BATTERY- SOLENOID- AND CABLES (OPTIONAL)
- BELLY PAN AND FRONT BUMPER ASSY.
- BELT GUARD ASSY.
- CONSOLE AND SWITCH ASSY.
- COOLING ASSY.
- CRANKCASE ASSY.
- CYLINDER AND HEAD ASSY.
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSY.
- DRIVE/REVERSE DROPCASE ASSY. (OPTIONAL)
- DRIVEN CLUTCH
- DROPCASE CHAIN TENSION ASSY. (OPTIONAL)
- ELECTRICAL
- • ENGINE AND RELATED PARTS
- EXHAUST ASSY.
- FLEX-DRIVE STARTER MOTOR ASSY. (OPTIONAL)
- FRONT FRAME AND FOOTREST ASSY.
- FRONT SUSPENSION SHOCK ABSORBER
- FRONT SUSPENSION SHOCK ABSORBER ASSY.
- FUEL PUMP ASSY.
- GAS TANK ASSY.
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSY.
- HYDRAULIC BRAKE CONTROL ASSY.
- IDLER WHEEL ASSY.
- MAGNETO
- OIL PUMP
- OIL TANK ASSY.
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSY.
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSY.
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSY.
- REVERSE SHIFT LEVER ASSY. (OPTIONAL)
- SEAT- RACK- AND TAILLIGHT ASSY.
- SERVOMOTOR ASSY.
- SKI AND SPINDLE ASSY.
- SLIDE RAIL AND TRACK ASSY.
- STEERING POST ASSY.
- THROTTLE BODY ASSY.
- TIE ROD ASSY.
- TUNNEL AND REAR BUMPER
- WATER PUMP/WATER MANIFOLD ASSY.
