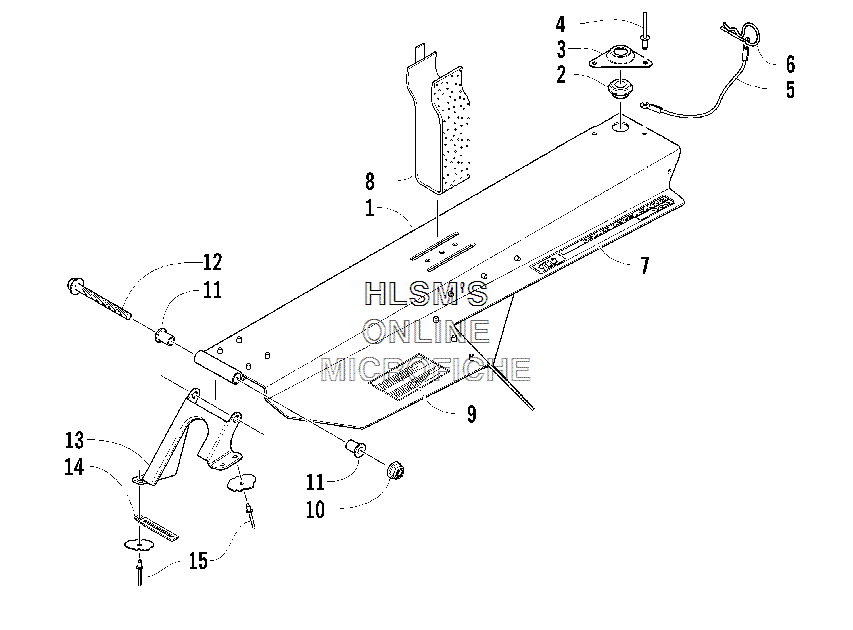

BELT GUARD ASSY. для Arctic Cat King Cat 900 EFI (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10707-994 BELT GUARD (INC. 2, 6)BELT GUARD (INC. 2, 6)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
30607-550 PLATE, BUSHING, BELT GUARDPLATE, BUSHING, BELT GUARD
-
48060-504 RIVETRIVET
-
50607-447 CABLECABLE
-
60605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
73611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
-
80707-582 RETAINER, DRIVE BELT, VELCRORETAINER, DRIVE BELT, VELCRO
-
91611-565 DECAL, WARNING, BELT GUARDDECAL, WARNING, BELT GUARD
-
108047-366 NUT, LOCKNUT, LOCK
-
110607-094 INSERT, HINGEINSERT, HINGE
-
128020-050 SCREW, CAPSCREW, CAP
-
130707-707 BRACKET, BELT GUARDBRACKET, BELT GUARD
-
143002-964 CLAMP, WIRECLAMP, WIRE
-
158061-508 RIVETRIVET
