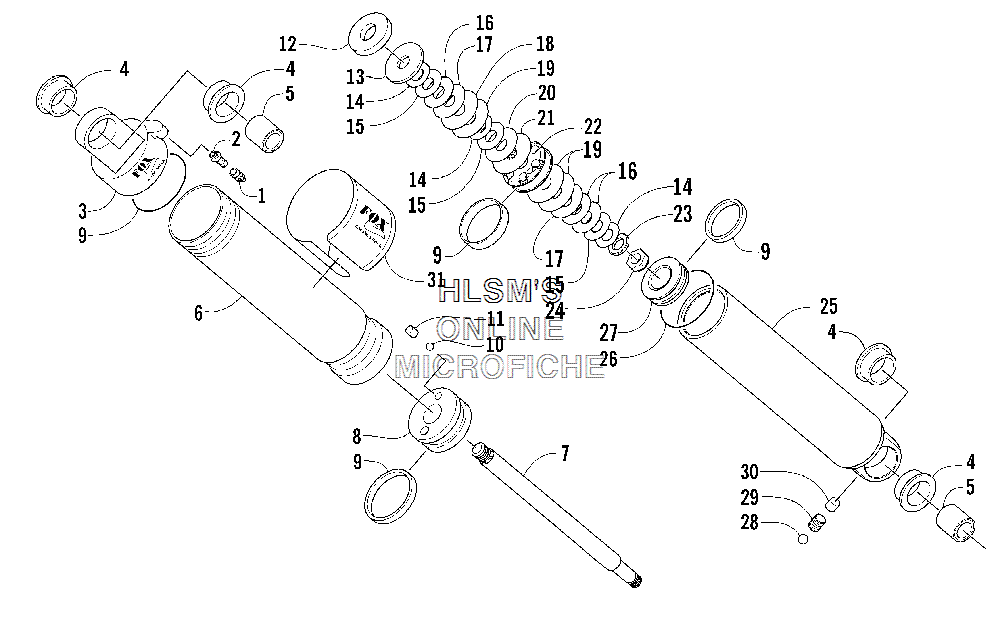

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat King Cat 900 EFI (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
12603-327 CAP, AIR VALVECAP, AIR VALVE
-
22603-326 VALVE, AIRVALVE, AIR
-
32603-418 END CAP, SHOCKEND CAP, SHOCK
-
40603-955 BUSHING, SHOCKBUSHING, SHOCK
-
51603-209 SLEEVE, SHOCKSLEEVE, SHOCK
-
62603-329 BODY, SHOCK, UPPERBODY, SHOCK, UPPER
-
72603-332 ROD, SHOCKROD, SHOCK
-
82603-333 CAP ASSY.CAP ASSY.
-
92604-796 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
101604-315 BALL, BLEEDBALL, BLEED
-
111603-940 SCREWSCREW
-
120603-386 BUMPER, INNERTERNALBUMPER, INNERTERNAL
-
130603-540 WASHER, TOP OUTWASHER, TOP OUT
-
140603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
150603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
160603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
170603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
180603-345 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
190603-346 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
200603-342 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
210603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
222603-309 PISTON, 0.093 IN., ORIFACEPISTON, 0.093 IN., ORIFACE
-
230603-389 WASHER, BACKUPWASHER, BACKUP
-
240603-301 NUT, CAPNUT, CAP
-
252603-335 BODY, SHOCK, LOWERBODY, SHOCK, LOWER
-
260604-810 O-RINGO-RING
-
272603-417 PISTON, FLOATINGPISTON, FLOATING
-
282603-337 BALL, AIR VALVEBALL, AIR VALVE
-
292603-338 SCREW, SETSCREW, SET
-
301604-428 PLUG, RUBBER, VALVEPLUG, RUBBER, VALVE
-
312603-610 DECAL, SHOCKDECAL, SHOCK
-
312639-149 OIL, SHOCK, 6 QT CASEOIL, SHOCK, 6 QT CASE
-
314639-012 FLUID, FLOAT SHOCK, 8 OZFLUID, FLOAT SHOCK, 8 OZ
