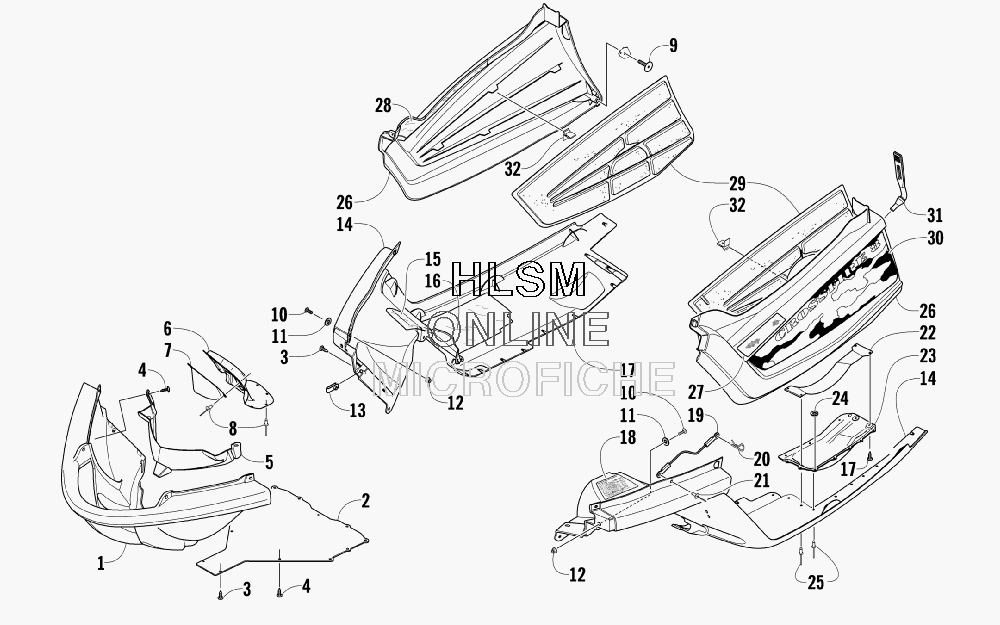

BELLY PAN ASSEMBLY для Arctic Cat AC CROSSFIRE 800 EFI LE - 2009 года выпуска
-
№АртикулНазвание
-
14606-040 BUMPER, FRONT - BLACKBUMPER, FRONT - BLACK
-
25606-483 BELLY PAN, CENTER - BLACKBELLY PAN, CENTER - BLACK
-
31623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
40623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
52606-911 SCREEN, BELLY PAN - CENTERSCREEN, BELLY PAN - CENTER
-
61612-853 SHIELD, HEATSHIELD, HEAT
-
71612-861 DEFLECTOR, EXHAUST - OUTLETDEFLECTOR, EXHAUST - OUTLET
-
80623-778 RIVETRIVET
-
91623-739 SCREW, RETAINING - ACCESS PANELSCREW, RETAINING - ACCESS PANEL
-
108017-581 SCREW, MACHINESCREW, MACHINE
-
118050-217 WASHERWASHER
-
128047-366 NUT, LOCKNUT, LOCK
-
131623-030 CLIP, U-NUTCLIP, U-NUT
-
144706-076 BELLY PAN - RIGHT - BLACKBELLY PAN - RIGHT - BLACK
-
143706-429 BELLY PAN - LEFT - BLACKBELLY PAN - LEFT - BLACK
-
154606-207 FOIL, PROTECTIVE - UPPERFOIL, PROTECTIVE - UPPER
-
164606-208 FOIL, PROTECTIVE - LOWERFOIL, PROTECTIVE - LOWER
-
170623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
188611-606 DECAL, CLUTCHINGDECAL, CLUTCHING
-
190607-447 CABLECABLE
-
200605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
218061-426 RIVETRIVET
-
225606-305 DEFLECTOR, DRIVEN CLUTCH PROTECTORDEFLECTOR, DRIVEN CLUTCH PROTECTOR
-
234606-417 PROTECTOR, DRIVEN CLUTCHPROTECTOR, DRIVEN CLUTCH
-
240123-802 WASHERWASHER
-
258061-628 RIVETRIVET
-
264606-256 PANEL, ACCESS - RIGHT - BLACKPANEL, ACCESS - RIGHT - BLACK
-
264606-257 PANEL, ACCESS - LEFT - BLACKPANEL, ACCESS - LEFT - BLACK
-
277611-160 DECAL, REFLECTOR - AMBER - RIGHTDECAL, REFLECTOR - AMBER - RIGHT
-
277611-161 DECAL, REFLECTOR - AMBER - LEFTDECAL, REFLECTOR - AMBER - LEFT
-
285606-052 FOIL, PROTECTIVE - ACCESS PANELFOIL, PROTECTIVE - ACCESS PANEL
-
290617-502 FOAM, SIDE PANEL - RIGHTFOAM, SIDE PANEL - RIGHT
-
290617-503 FOAM, SIDE PANEL - LEFTFOAM, SIDE PANEL - LEFT
-
308611-594 DECAL, ACCESS PANEL - RIGHTDECAL, ACCESS PANEL - RIGHT
-
308611-595 DECAL, ACCESS PANEL - LEFTDECAL, ACCESS PANEL - LEFT
-
312606-624 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
321623-694 CLIP, RETAININGCLIP, RETAINING
