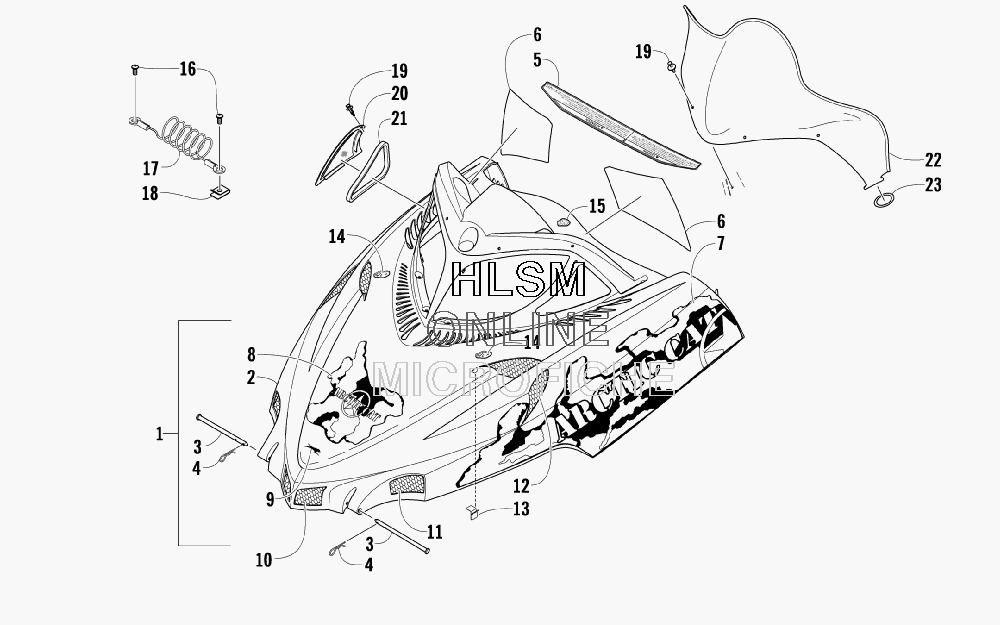

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat AC CROSSFIRE 800 EFI LE - 2009 года выпуска
-
№АртикулНазвание
-
12718-523 HOOD W/DECALS - BLACK (INC. 2-9)HOOD W/DECALS - BLACK (INC. 2-9)
-
22718-268 ...HOOD W/O DECALS - BLACK (INC. 3-6)...HOOD W/O DECALS - BLACK (INC. 3-6)
-
31623-026 ......PIN, CLEVIS......PIN, CLEVIS
-
40623-847 ......CLIP, HAIRPIN......CLIP, HAIRPIN
-
56611-143 ......DECAL, CAUTION......DECAL, CAUTION
-
66611-144 ......DECAL, WARNING - ENGLISH......DECAL, WARNING - ENGLISH
-
66611-145 ......DECAL, WARNING - FRENCH......DECAL, WARNING - FRENCH
-
78611-598 ...DECAL, HOOD - LOWER RIGHT...DECAL, HOOD - LOWER RIGHT
-
78611-599 ...DECAL, HOOD - LOWER LEFT...DECAL, HOOD - LOWER LEFT
-
88611-600 ...DECAL, HOOD - CREST...DECAL, HOOD - CREST
-
98611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
102706-793 SCREEN, VENT - CENTERSCREEN, VENT - CENTER
-
113706-260 SCREEN, VENT - FRONT - RIGHTSCREEN, VENT - FRONT - RIGHT
-
113706-261 SCREEN, VENT - FRONT - LEFTSCREEN, VENT - FRONT - LEFT
-
122706-796 SCREEN, VENT - REAR - RIGHTSCREEN, VENT - REAR - RIGHT
-
122706-797 SCREEN, VENT - REAR - LEFTSCREEN, VENT - REAR - LEFT
-
131623-694 CLIP, RETAININGCLIP, RETAINING
-
140617-510 FOAM, HOOD - RIGHTFOAM, HOOD - RIGHT
-
140617-545 FOAM, HOOD - LEFTFOAM, HOOD - LEFT
-
150617-489 FOAM, HOOD - REARFOAM, HOOD - REAR
-
160623-302 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
172606-726 CABLE, HOODCABLE, HOOD
-
181623-052 CLIP, U-NUTCLIP, U-NUT
-
190623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
205606-080 BEZEL, INTAKE - RIGHTBEZEL, INTAKE - RIGHT
-
205606-081 BEZEL, INTAKE - LEFTBEZEL, INTAKE - LEFT
-
210617-486 FOAM, INTAKE BEZEL - RIGHTFOAM, INTAKE BEZEL - RIGHT
-
210617-487 FOAM, INTAKE BEZEL - LEFTFOAM, INTAKE BEZEL - LEFT
-
225606-583 WINDSHIELDWINDSHIELD
-
230616-032 O-RINGO-RING
