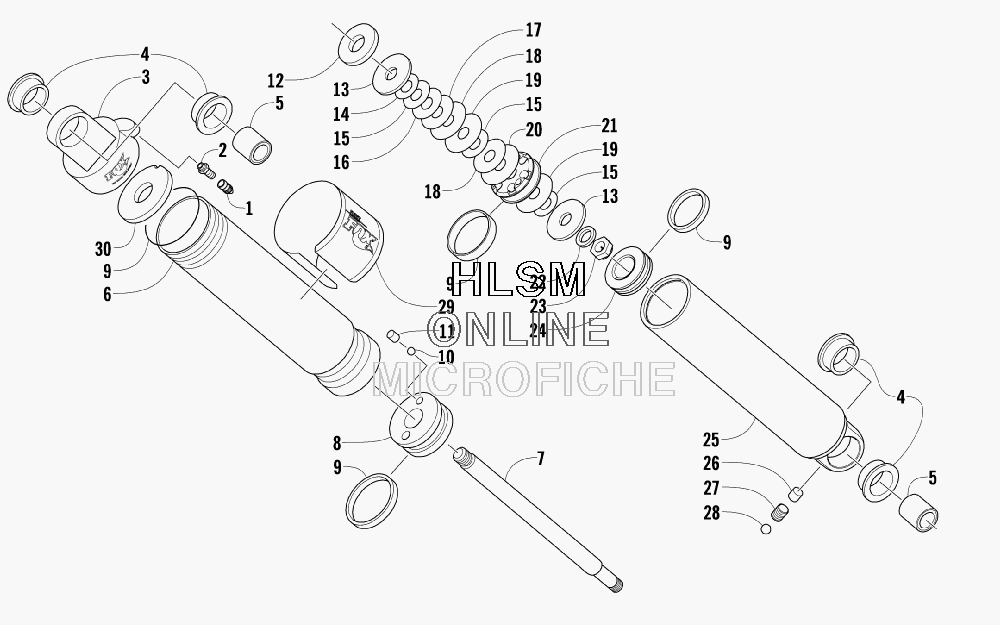

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat AC CROSSFIRE 800 EFI LE - 2009 года выпуска
-
№АртикулНазвание
-
-2703-403 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12603-327 CAP, AIR VALVECAP, AIR VALVE
-
22603-511 VALVE, AIRVALVE, AIR
-
32603-418 END CAP, SHOCKEND CAP, SHOCK
-
40603-955 BUSHING, SHOCKBUSHING, SHOCK
-
51603-209 SLEEVE, SHOCKSLEEVE, SHOCK
-
62603-411 BODY, SHOCK - UPPERBODY, SHOCK - UPPER
-
72603-415 ROD, SHOCKROD, SHOCK
-
82603-333 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
92604-796 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
101604-315 BALL, BLEEDBALL, BLEED
-
111603-940 SCREW, SETSCREW, SET
-
120603-386 BUMPER, INTERNALBUMPER, INTERNAL
-
130603-540 WASHER, TOP OUTWASHER, TOP OUT
-
140603-331 VALVE, 0.700 X 0.008 INVALVE, 0.700 X 0.008 IN
-
150603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
160603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
170603-340 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
180603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
190603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
200603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
212604-412 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
220603-389 WASHER, BACKUPWASHER, BACKUP
-
230603-301 NUT, CAPNUT, CAP
-
242603-417 PISTON, FLOATINGPISTON, FLOATING
-
252603-413 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
261604-428 PLUG, RUBBER - VALVEPLUG, RUBBER - VALVE
-
272603-338 SCREW, SETSCREW, SET
-
282603-337 BALL, AIR VALVEBALL, AIR VALVE
-
292603-610 DECAL, SHOCKDECAL, SHOCK
-
302603-613 SPACERSPACER
-
*5639-240 OIL, SHOCK - 1 QT (NOT ILLUSTRATED)OIL, SHOCK - 1 QT (NOT ILLUSTRATED)
-
*4639-012 FLUID, FLOAT SHOCK - 8 OZ (NOT ILLUSTRATED)FLUID, FLOAT SHOCK - 8 OZ (NOT ILLUSTRATED)
