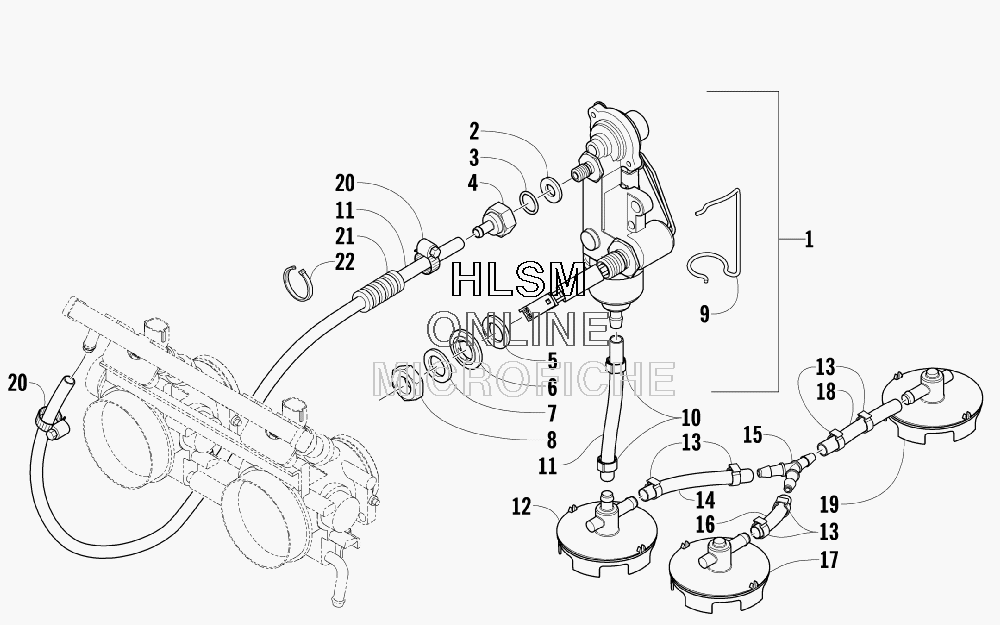

FUEL PUMP ASSEMBLY для Arctic Cat AC CROSSFIRE 800 EFI LE - 2009 года выпуска
-
№АртикулНазвание
-
11670-851 PUMP, FUEL - ASSEMBLY (INC. 2-9)PUMP, FUEL - ASSEMBLY (INC. 2-9)
-
21670-535 ...GROMMET...GROMMET
-
31670-476 ...O-RING...O-RING
-
41670-475 ...NUT, FUEL PUMP FITTING...NUT, FUEL PUMP FITTING
-
51670-534 ...GROMMET...GROMMET
-
61670-479 ...WASHER, SEALING - THREADED...WASHER, SEALING - THREADED
-
71670-478 ...WASHER...WASHER
-
81670-477 ...NUT, MOUNTING...NUT, MOUNTING
-
91670-579 ...RETAINER, WIRE...RETAINER, WIRE
-
100610-563 CLAMP, HOSECLAMP, HOSE
-
110610-691 HOSE, GASLINE - 10 FTHOSE, GASLINE - 10 FT
-
121670-701 PICKUP, FUELPICKUP, FUEL
-
131670-706 CLAMP, HOSECLAMP, HOSE
-
141670-703 HOSE, GASLINEHOSE, GASLINE
-
151670-705 Y-FITTINGY-FITTING
-
161670-702 HOSE, GASLINEHOSE, GASLINE
-
171670-619 PICKUP, FUELPICKUP, FUEL
-
181670-704 HOSE, GASLINEHOSE, GASLINE
-
191670-618 PICKUP, FUELPICKUP, FUEL
-
200623-373 CLAMP, HOSECLAMP, HOSE
-
214706-549 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
220123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
