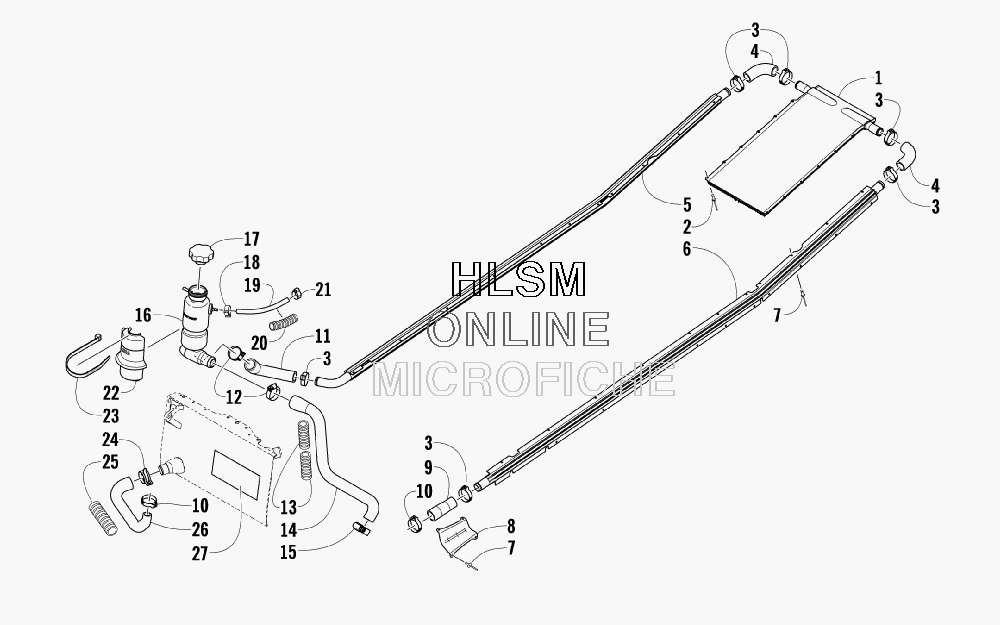

COOLING ASSEMBLY для Arctic Cat AC CROSSFIRE 800 EFI LE - 2009 года выпуска
-
№АртикулНазвание
-
14706-179 HEAT EXCHANGER - REARHEAT EXCHANGER - REAR
-
28060-686 RIVETRIVET
-
31623-349 CLAMP, HOSECLAMP, HOSE
-
40610-567 HOSE, COOLANTHOSE, COOLANT
-
55606-806 HEAT EXCHANGER - RIGHTHEAT EXCHANGER - RIGHT
-
65606-807 HEAT EXCHANGER - LEFTHEAT EXCHANGER - LEFT
-
78060-484 RIVETRIVET
-
78060-488 RIVETRIVET
-
84606-270 PROTECTOR, HOSEPROTECTOR, HOSE
-
90610-679 HOSE, COOLANT - FRONT/LEFT HEAT EXCHANGERHOSE, COOLANT - FRONT/LEFT HEAT EXCHANGER
-
101623-656 CLAMP, HOSECLAMP, HOSE
-
110610-659 HOSE, COOLANT - TANK/RIGHT HEAT EXCHANGERHOSE, COOLANT - TANK/RIGHT HEAT EXCHANGER
-
121623-093 CLAMP, HOSECLAMP, HOSE
-
131619-109 PROTECTOR, HOSE - 7 IN.PROTECTOR, HOSE - 7 IN.
-
140610-681 HOSE, COOLANT TANK/ENGINEHOSE, COOLANT TANK/ENGINE
-
151623-230 CLAMP, HOSECLAMP, HOSE
-
163706-684 TANK, COOLANTTANK, COOLANT
-
174606-209 CAPCAP
-
180124-045 CLAMP, HOSECLAMP, HOSE
-
190610-538 HOSE, COOLANT - 25 FTHOSE, COOLANT - 25 FT
-
202604-539 CONDUIT, FLEXIBLE - 10 FTCONDUIT, FLEXIBLE - 10 FT
-
211623-619 CLAMP, HOSECLAMP, HOSE
-
225606-040 SHIELD, HEATSHIELD, HEAT
-
230123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
241623-322 CLAMP, HOSECLAMP, HOSE
-
250619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
260610-705 HOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGER
-
274606-962 PAD, HEAT EXCHANGER - FRONTPAD, HEAT EXCHANGER - FRONT
