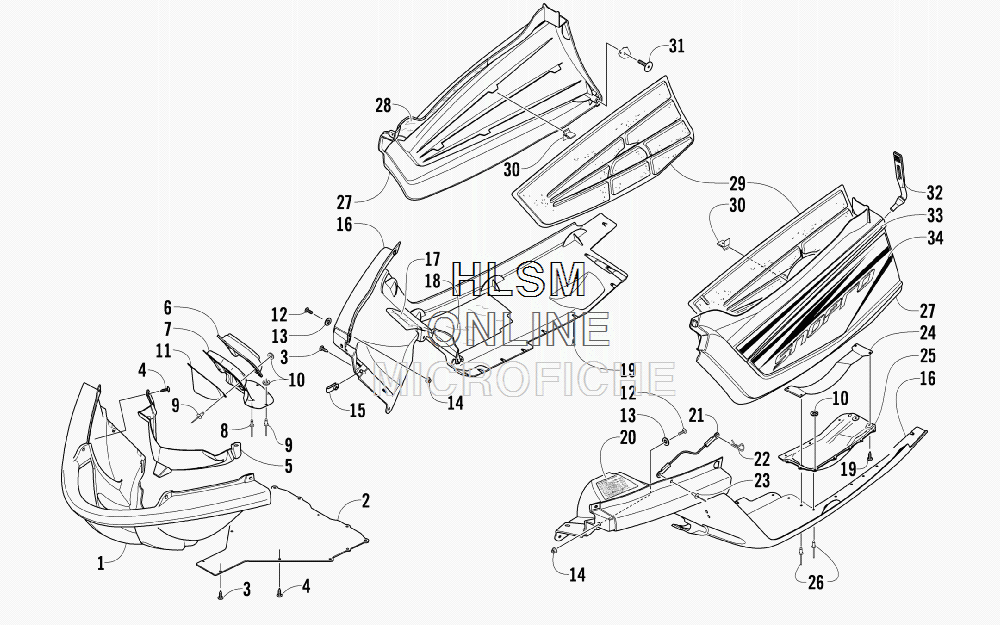

BELLY PAN ASSEMBLY для Arctic Cat M1000 SNO PRO 162 INTERNATIONAL - 2010 года выпуска
-
№АртикулНазвание
-
14606-040 BUMPER, FRONT - BLACKBUMPER, FRONT - BLACK
-
25606-483 BELLY PAN, CENTER - BLACKBELLY PAN, CENTER - BLACK
-
31623-129 SCREW, SELF TAP-TXSTRH #10-12X5/8 TP A BLKSCREW, SELF TAP-TXSTRH #10-12X5/8 TP A BLK
-
40623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLKSCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
-
52606-911 SCREEN, BELLY PAN - CENTERSCREEN, BELLY PAN - CENTER
-
62612-385 BOOT, EXHAUSTBOOT, EXHAUST
-
71712-557 SHIELD, HEATSHIELD, HEAT
-
80623-778 RIVETRIVET
-
98060-610 RIVETRIVET
-
100123-802 WASHERWASHER
-
112612-008 DEFLECTOR, EXHAUST - OUTLETDEFLECTOR, EXHAUST - OUTLET
-
128017-581 SCREW, MACHINESCREW, MACHINE
-
138050-217 WASHERWASHER
-
148047-366 NUT, LOCKNUT, LOCK
-
151623-030 CLIP, U-NUTCLIP, U-NUT
-
164706-078 BELLY PAN - RIGHT - BLACKBELLY PAN - RIGHT - BLACK
-
163706-429 BELLY PAN - LEFT - BLACKBELLY PAN - LEFT - BLACK
-
174606-436 FOIL, PROTECTIVE - UPPERFOIL, PROTECTIVE - UPPER
-
184606-781 FOIL, PROTECTIVE - LOWERFOIL, PROTECTIVE - LOWER
-
190623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
209611-005 DECAL, CLUTCHINGDECAL, CLUTCHING
-
210607-447 CABLECABLE
-
220605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
238061-426 RIVETRIVET
-
245606-305 DEFLECTOR, DRIVEN CLUTCH PROTECTORDEFLECTOR, DRIVEN CLUTCH PROTECTOR
-
254606-417 PROTECTOR, DRIVEN CLUTCHPROTECTOR, DRIVEN CLUTCH
-
268061-628 RIVETRIVET
-
274606-256 PANEL, ACCESS - RIGHT - BLACKPANEL, ACCESS - RIGHT - BLACK
-
274606-257 PANEL, ACCESS - LEFT - BLACKPANEL, ACCESS - LEFT - BLACK
-
285606-052 FOIL, PROTECTIVE - ACCESS PANELFOIL, PROTECTIVE - ACCESS PANEL
-
290617-502 FOAM, SIDE PANEL - RIGHTFOAM, SIDE PANEL - RIGHT
-
290617-503 FOAM, SIDE PANEL - LEFTFOAM, SIDE PANEL - LEFT
-
301623-694 CLIP, RETAININGCLIP, RETAINING
-
311623-739 SCREW, RETAINING - ACCESS PANELSCREW, RETAINING - ACCESS PANEL
-
322606-624 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
338611-920 DECAL, ACCESS PANEL - UPPER RIGHTDECAL, ACCESS PANEL - UPPER RIGHT
-
338611-921 DECAL, ACCESS PANEL - UPPER LEFTDECAL, ACCESS PANEL - UPPER LEFT
-
348611-938 DECAL, ACCESS PANEL - LOWER RIGHTDECAL, ACCESS PANEL - LOWER RIGHT
-
348611-939 DECAL, ACCESS PANEL - LOWER LEFTDECAL, ACCESS PANEL - LOWER LEFT
