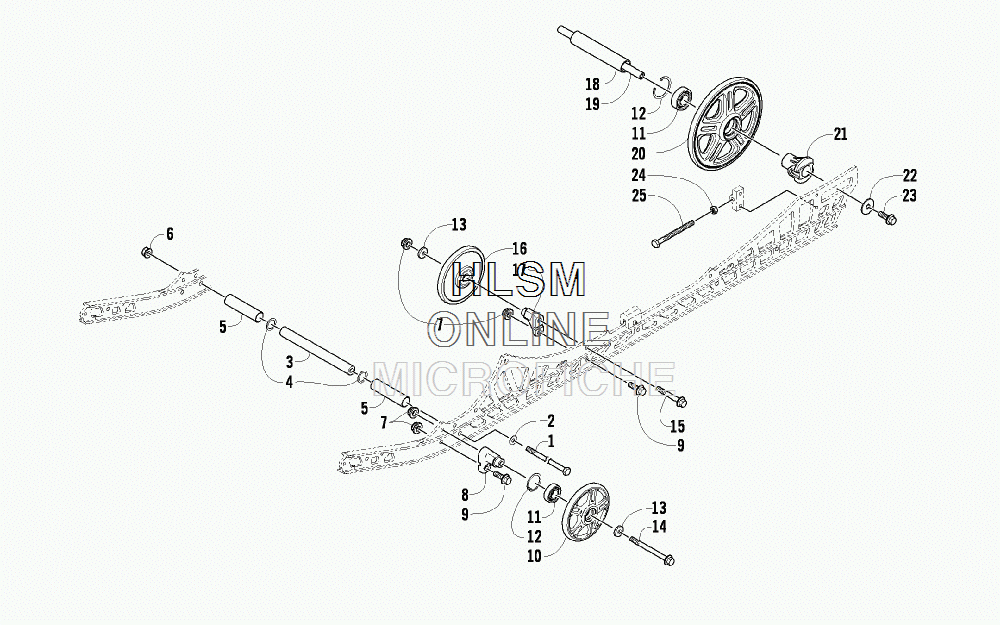

IDLER WHEEL ASSEMBLY для Arctic Cat M1000 SNO PRO 162 INTERNATIONAL - 2010 года выпуска
-
№АртикулНазвание
-
11623-037 SCREW, CAPSCREW, CAP
-
20623-439 WASHERWASHER
-
33604-080 AXLEAXLE
-
40623-912 WASHERWASHER
-
53604-083 SPACER, FRONT ARM SHOCKSPACER, FRONT ARM SHOCK
-
68047-490 NUT, HEX FLG-NY LOCK 3/8-16 GR G Z & YNUT, HEX FLG-NY LOCK 3/8-16 GR G Z & Y
-
78047-426 NUT, HEX FLG-NY LOCK 5/16-18 GR F Z & YNUT, HEX FLG-NY LOCK 5/16-18 GR F Z & Y
-
83604-207 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
98020-134 SCREW, CAPSCREW, CAP
-
103604-386 WHEEL, IDLER - BLACK (INC. 11-12)WHEEL, IDLER - BLACK (INC. 11-12)
-
113604-033 ...BEARING...BEARING
-
120623-946 ...RING, RETAINING...RING, RETAINING
-
138450-133 WASHERWASHER
-
148020-140 SCREW, CAP-HFH 5/16-18 X 2.75 G5 Z & YSCREW, CAP-HFH 5/16-18 X 2.75 G5 Z & Y
-
158020-142 SCREW, CAP-HFH 5/16-18 X 3.25 G5 Z & YSCREW, CAP-HFH 5/16-18 X 3.25 G5 Z & Y
-
163604-486 WHEEL, IDLERWHEEL, IDLER
-
173604-004 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
181604-810 SPACER, REAR WHEELSPACER, REAR WHEEL
-
193604-399 AXLE, REAR WHEELAXLE, REAR WHEEL
-
203604-073 WHEEL, IDLER (INC. 11-12)WHEEL, IDLER (INC. 11-12)
-
211704-489 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
221623-738 WASHERWASHER
-
231623-248 SCREW, CAPSCREW, CAP
-
240123-150 NUTNUT
-
250124-310 SCREW, CAPSCREW, CAP
