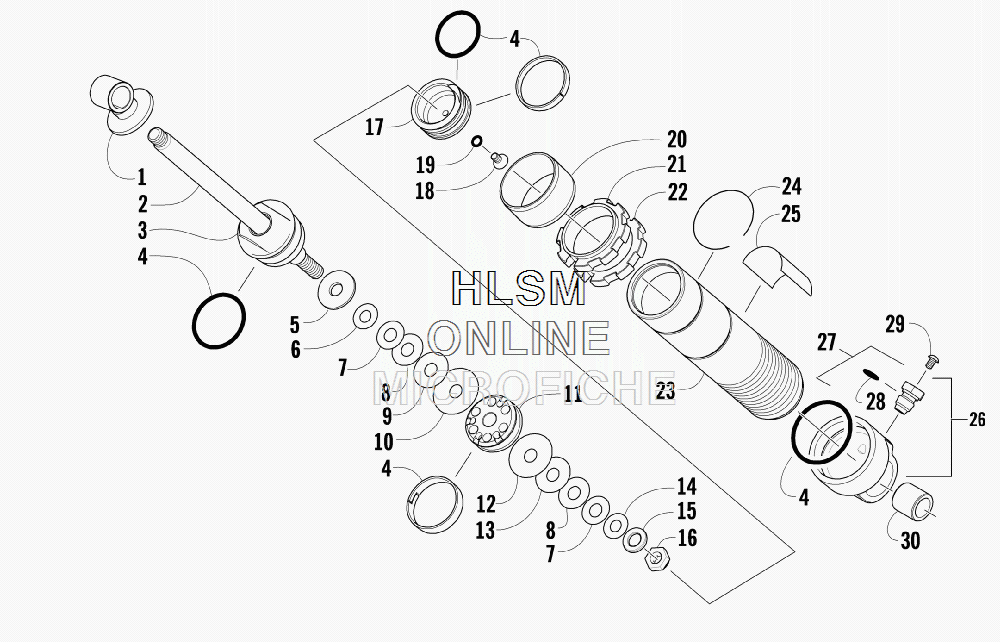

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat M1000 SNO PRO 162 INTERNATIONAL - 2010 года выпуска
-
№АртикулНазвание
-
-1704-351 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-861 ROD, SHOCKROD, SHOCK
-
32604-812 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
42604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
50603-540 WASHER, TOP OUTWASHER, TOP OUT
-
60603-334 VALVE, 0.800 X 0.008 IN.VALVE, 0.800 X 0.008 IN.
-
70603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
80603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
90603-882 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
100603-891 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
110603-206 PISTON, 0.059 IN. - ORIFICEPISTON, 0.059 IN. - ORIFICE
-
120603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
130603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
140603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
150603-389 WASHER, BACKUPWASHER, BACKUP
-
160603-301 NUTNUT
-
172604-816 PISTON, FLOATING - ASSEMBLYPISTON, FLOATING - ASSEMBLY
-
181604-316 SCREW, RELIEF (INC. 19)SCREW, RELIEF (INC. 19)
-
191604-425 ...O-RING...O-RING
-
202603-246 SLEEVE, WEARSLEEVE, WEAR
-
212604-840 NUT, ADJUSTERNUT, ADJUSTER
-
222604-841 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
232604-862 BODY, SHOCKBODY, SHOCK
-
242603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
252603-475 DECAL, SHOCKDECAL, SHOCK
-
262604-817 END CAP, SHOCK (INC. 27-28)END CAP, SHOCK (INC. 27-28)
-
270703-341 ...VALVE, PRESSURE (INC. 28)...VALVE, PRESSURE (INC. 28)
-
281604-318 ......O-RING, VALVE......O-RING, VALVE
-
290624-097 SCREW, VALVESCREW, VALVE
-
302604-415 BUSHINGBUSHING
-
-5639-240 SEMI-SYN SHOCK OIL-1 QUART - NOT ILLUSTRATEDSEMI-SYN SHOCK OIL-1 QUART - NOT ILLUSTRATED
